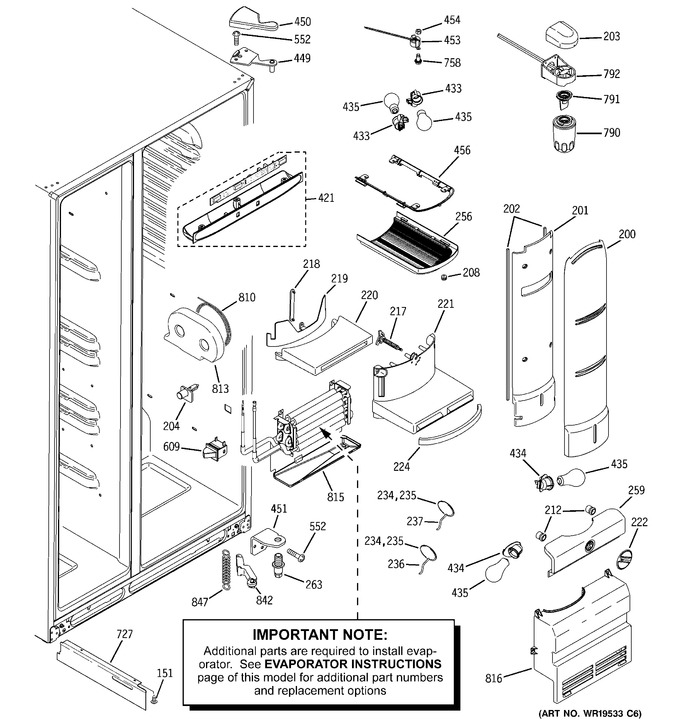

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 151 | WR1X1554 | Scr 8-18 Ab Ihxw 1/2 S |
|
- | |||||
| 200 | WR17X11702 | Cover Ff Air Tower |
|
- | |||||
| 201 | WR17X11703 | Eps Ff Tower |
|
- | |||||
| 202 | WR14X10188 | Gasket Tower Ff |
|
- | |||||
| 203 | WR17X11841 | Cover Water Filter |
|
- | |||||
| 204 | WR01A00969 | Support Shelf (Replaces: WR02X12188) |
|
$ 3.57 | |||||
| 208 | WR01X10431 | Nut 6-32 Un |
|
- | |||||
| 212 | WR02X10689 | Grommet Base Grille |
|
- | |||||
| 217 | WR01L01196 | Dial Pan Chill (Replaces: WR32X10154) |
|
$ 4.20 | |||||
| 218 | WR02X10665 | Linkage Pan Chill |
|
- | |||||
| 219 | WR02X10664 | Shutter Pan Chill |
|
- | |||||
| 220 | WR02X11851 | Eps Pan Chill |
|
- | |||||
| 221 | WR02X11852 | Discharge Pan Chill |
|
- | |||||
| 222 | WR01L03253 | Knob Pan Chill (Replaces: WR02X10666) |
|
$ 6.08 | |||||
| 224 | WR02X11853 | Foam Strip Se Adh |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.57 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 14.29 | ||||
| 236 | WR55X10027 | Sensor Temp Ff |
|
- | |||||
| 237 | WR55X10028 | Sensor Temp Ff |
|
- | |||||
| 256 | WR17X11713 | Shield Light Ff |
|
- | |||||
| 259 | WR17X11712 | Light Shield |
|
- | |||||
| 263 | WR01A00453 | Pin Hinge Btm Adj Hollow (Replaces: WR02X12263) |
|
$ 17.01 | |||||
| 421 | WR55X10503 | Interface Customer Asm |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 434 | WR02X10645 | Socket Lamp |
|
- | |||||
| 435 | 40A15 | Lamp 40 W |
|
Immediately | $ 1.98 | ||||
| 449 | WR13X10217 | Hinge Top & Pin Asm Ff |
|
- | |||||
| 450 | WR02X10688 | Cover Hinge Wh |
|
- | |||||
| 451 | WR13X10126 | Hinge Btm Wh |
|
- | |||||
| 451 | WR13X10134 | Hinge Btm Wh |
|
- | |||||
| 453 | WR23X10209 | Harness/tstat Ff Lt |
|
- | |||||
| 454 | WR01X10212 | Nut 8-32 |
|
- | |||||
| 456 | WR71X10595 | Bezel Light Ff |
|
- | |||||
| 552 | WR1X2022 | Screw |
|
- | |||||
| 609 | WG03A03078 | Switch Light (Replaces: WR23X10175) |
|
Immediately | $ 11.39 | ||||
| 727 | WR17X11500 | Separator Air Hiside |
|
- | |||||
| 758 | WD2X323 | Scr 8-32 X 3/8 Sph |
|
- | |||||
| 790 | PMMWF | Filter Canister (Replaces: GWF) |
|
Immediately | $ 78.60 | ||||
| 791 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 17.97 | ||||
| 792 | WR17X11028 | Filter Asm And Tube |
|
- | |||||
| 792 | WR01F00791 | Filter Asm And Tube (Replaces: WR17X11920) |
|
Immediately | $ 22.19 | ||||
| 810 | WR17X11845 | Cover Tank Water Coil As |
|
- | |||||
| 813 | WR17X11710 | Cover Water Tank |
|
- | |||||
| 815 | WR01F01869 | Trough Drain Asm (Replaces: WR17X11843) |
|
Immediately | $ 49.66 | ||||
| 816 | WR17X11915 | Cover Evap Asm |
|
- | |||||
| 842 | WR11X10007 | Lever Asm Ff Side Wh |
|
- | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 |
