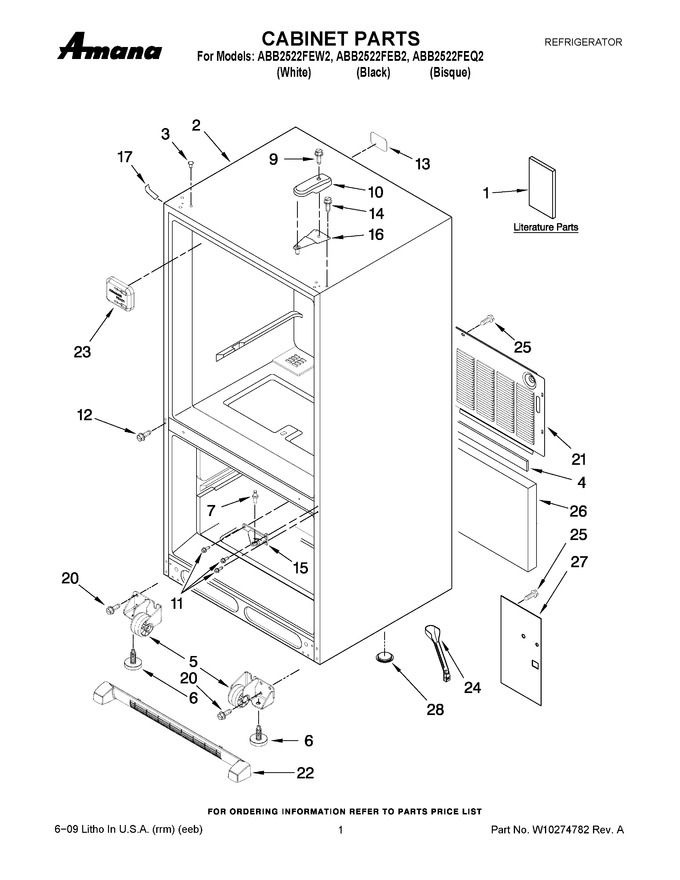

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10183261 | Energy Guide |
|
- | |||||
| 1 | W10238840 | Tech Sheet |
|
- | |||||
| 1 | W10175445 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820445 | Roller Assembly (right Side) (Replaces: W10212381) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Assembly (left Side) (Replaces: W10212382) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 12477601C | Cover, Hinge (bisque) |
|
- | |||||
| 10 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 10 | 67001014 | Cover, Hinge White (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 13 | W11685757 | Label, Fl Tb Plug (Replaces: 12249902) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 15 | W11689473 | Hinge, Center White (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 22.90 | |||||
| 17 | 12587703C | Cover, Corner (bisque) |
|
- | |||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W10211854 | Cover, Unit |
|
$ 178.37 | |||||
| 22 | WPW10534153 | Grille Assembly (includes Clips) (black) (Replaces: 12880103B) |
|
$ 154.57 | |||||
| 22 | WPW10534154 | Grille Assembly (includes Clips) (white) (Replaces: 12880103W) |
|
$ 153.66 | |||||
| 22 | 12880103Q | Grille Assembly (includes Clips) (bisque) |
|
- | |||||
| 23 | WP67001098 | Cover, Fl Tb (Replaces: 12477501) |
|
$ 8.43 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | A3076901 | Plug-button |
|
$ 5.70 |
