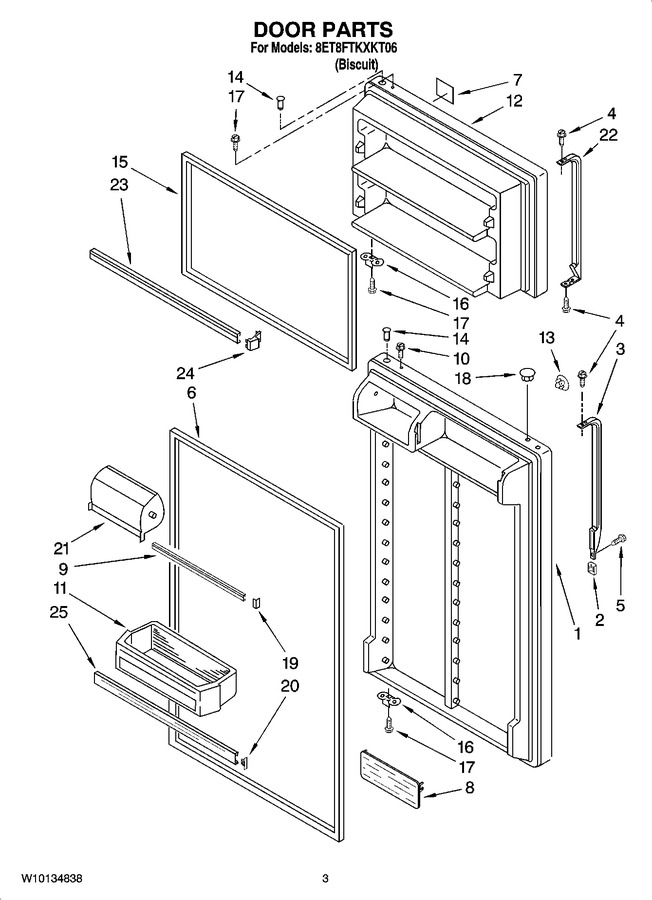

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205281		Refrigerator Door (incl.6 & 14) (biscuit)		Appelez-nous	-
2	2193353T		Cover, Endcap (biscuit)		Appelez-nous	-
3	2213112T		Handle Center (biscuit)		Appelez-nous	-
4	8534058		Screw				$ 8.87
5	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
6	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
7	2212596		Nameplate (biscuit)		Appelez-nous	-
8	WP2188234		Shelf, Flip-up   (Replaces: 2188234)			Immediately	$ 60.31
9	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
10	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
11	WP2204810		Door Bin (3)   (Replaces: 2204810)				$ 83.57
12	2205279		Freezer Door (includes Illus. 14 & 15) (biscuit)		Appelez-nous	-
13	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
14	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
15	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
16	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
17	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
18	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
19	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
20	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
21	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
22	2213111T		Handle, F.c. (biscuit)		Appelez-nous	-
23	2195946		Trim-door (2)				$ 46.58
24	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
25	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25
