SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

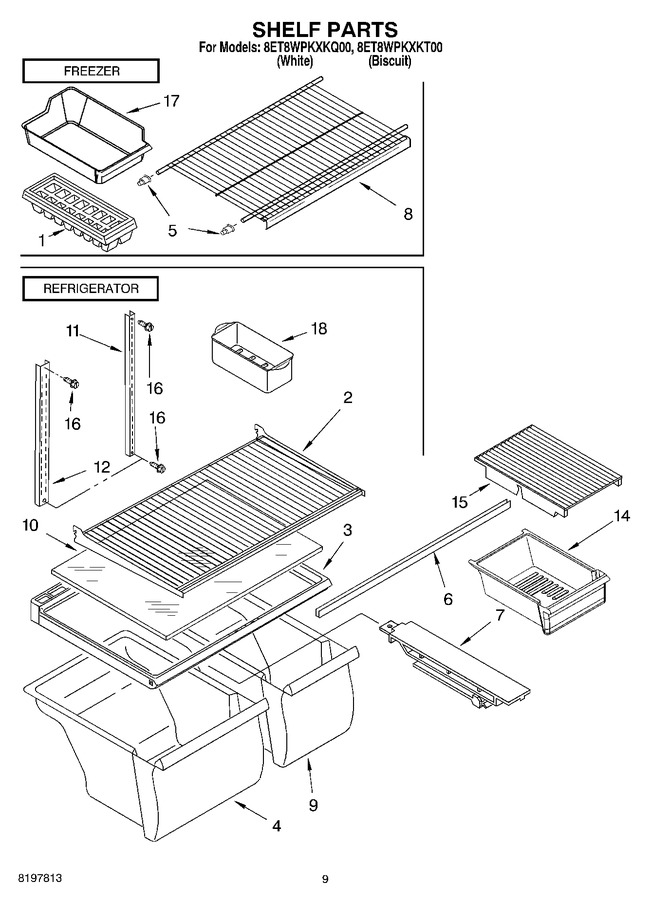

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
2	2163856		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 247.46
4	W10854037		Pan, Crisper   (Replaces: 2166256)			Immediately	$ 170.66
5	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.00
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 97.22
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 34.74
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Pan, Crisper   (Replaces: 2166257)			Immediately	$ 168.60
10	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 246.60
11	2210522		Shelf, Ladder (2)				$ 44.10
12	2202821		Shelf, Ladder		Appelez-nous	-
14	2200920K		Meat Pan				$ 81.92
15	2163848		Cover, Meat Pan				$ 71.41
16	3400518		Screw				$ 12.98
17	2254352A		Bucket, Ice   (Replaces: 2176219)				$ 55.85
18	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
18	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
18	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
18	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
18	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
18	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
18	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
18	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
18	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
18	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
18	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 26.45
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
18	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
18	833938		Kit, Terminal Connector				$ 8.07
18	1117510		Torx Key				$ 5.84
18	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
18	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
18	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
18	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
18	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
18	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
18	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
18	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56

    View Diagram in Separate Window       Print Part List
