SELECT A DIAGRAM

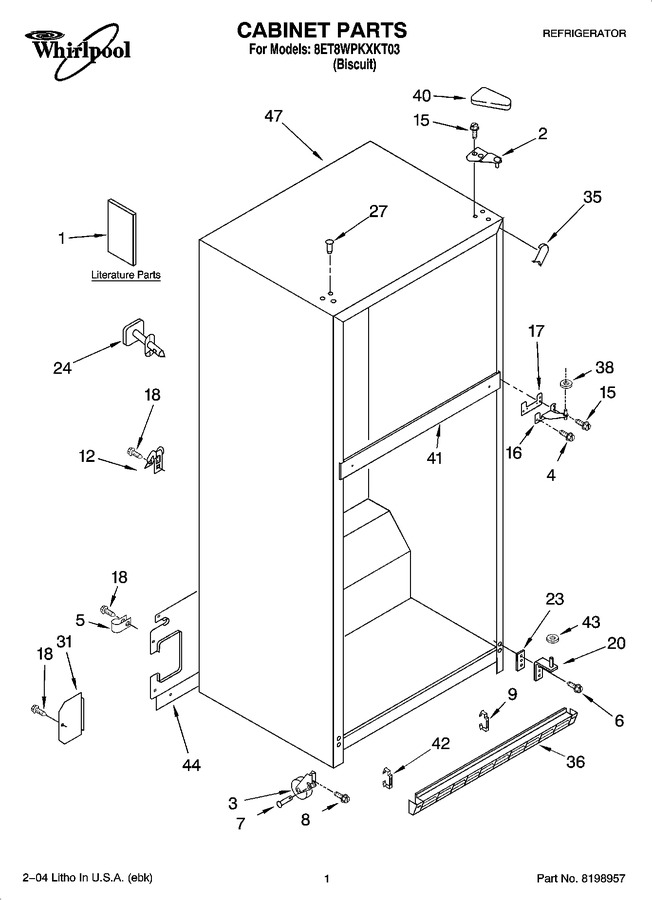

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT677969 | Literature Parts (do-it-yourself Manual, Ref/fzr) |
|
- | |||||
| 1 | LIT2225759 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT2218585 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 8 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.19 | |||||
| 9 | 2254385 | Clip-grille |
|
$ 84.64 | |||||
| 12 | 549193 | Clamp-cord |
|
$ 13.39 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 87.64 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.89 | |||||
| 18 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 20 | WP2254473 | Hinge Butt, Btm (Replaces: 2189194) |
|
$ 8.47 | |||||
| 23 | 2172743 | Shim, Bottom Hinge |
|
$ 33.55 | |||||
| 24 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 27 | 2200924 | Hole Plug (6) |
|
- | |||||
| 31 | 2166251 | Cover, Water Valve |
|
$ 6.43 | |||||
| 35 | W10283958 | Corner Filler (2) (Replaces: 2200926) |
|
$ 24.41 | |||||
| 36 | WP2254386 | Grille (Replaces: 2254389) |
|
$ 94.53 | |||||
| 38 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 40 | 2213364 | Cover, Hinge |
|
$ 17.80 | |||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 42 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 43 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 44 | 2254582 | Cover, Unit (Replaces: 2200507) |
|
$ 128.31 | |||||
| 47 | N/A | Cabinet (not A Serviceable Part) |
|
- |
