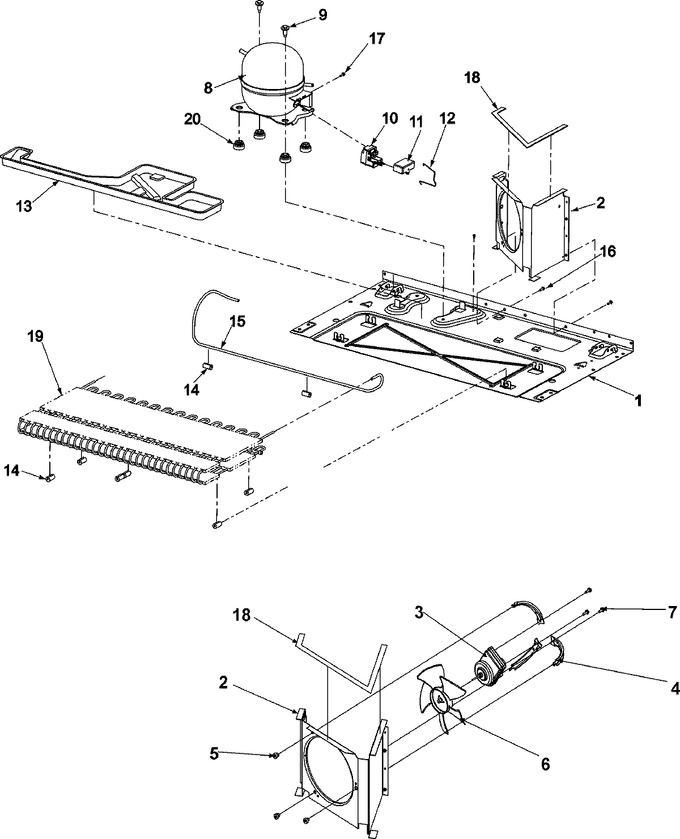

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005889		Pan, Base	10	Appelez-nous	-
2	67001090		Shroud, Condenser Fan	10	Appelez-nous	-
3	W11613295		Motor, Condenser Fan   (Replaces: 67004432)	11		Immediately	$ 136.84
4	WP67004953		Bracket, Cond Motor   (Replaces: 67004953)	11			$ 68.83
5	61004743		Grommet, Bracket	10			$ 5.51
6	W10156818		Blade, Cond Fan   (Replaces: 67004952)	11		Immediately	$ 62.11
7	WP67004954		Screw   (Replaces: 67004954)	10			$ 7.79
8	W10160407		Kit, Compressor   (Replaces: 12002634)	10			$ 599.92
9	12846902		Screw, Shoulder   (Replaces: 67006432)	10			$ 12.99
10	W10613606		Overload/relay W/capacitor   (Replaces: 67005560)	10		Immediately	$ 86.59
11	W10613606		Capacitor W/overload Relay   (Replaces: 67005562)	10		Immediately	$ 86.59
12	12576801		Strap, Bale	10	Appelez-nous	-
13	WP12579803		Pan, Drain   (Replaces: 67007175)	10			$ 245.45
14	67005680		Grommet, Condenser	10			$ 21.05
15	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 133.53
16	67006425		Screw, Sm	10		Immediately	$ 6.95
17	12992301		Screw   (Replaces: 67006433)	10			$ 7.32
18	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
19	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
20	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
NI	67005251		Harness, Mc	11			$ 54.90
