SELECT A DIAGRAM

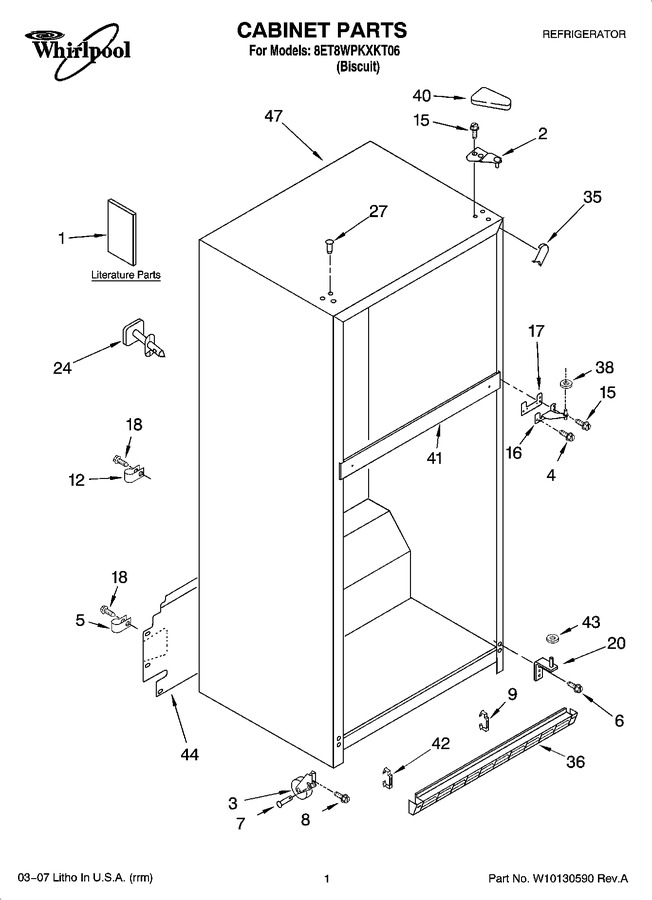

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2302299		Use & Care Guide (chinese)		Appelez-nous	-
1	2314273		Service & Wiring Sheet		Appelez-nous	-
1	2302300		Use & Care Guide (english)		Appelez-nous	-
1	677969		Use & Care Guide Following May Be Purchased Do-it-yourself Repair Manuals (do-it-yourself Manual, Ref./fzr.)				$ 30.30
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.18
6	WP489427		Screw   (Replaces: 489427)				$ 7.47
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 18.21
8	WP3400504		Screw   (Replaces: 3400504)				$ 7.19
9	2254385		Clip-grille				$ 84.64
12	489348		Clamp		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 87.64
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 10.89
18	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.83
20	WP2254473		Hinge Butt, Btm   (Replaces: 2254473)				$ 8.47
27	2200924		Hole Plug (6)		Appelez-nous	-
35	W10283958		Corner Filler (2)   (Replaces: 2200926)				$ 24.41
36	2254311		Grille		Appelez-nous	-
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
40	2213364		Cover, Hinge				$ 17.80
42	2189356		Clip-grille				$ 5.70
43	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
44	2254582		Cover, Unit				$ 128.31
