SELECT A DIAGRAM

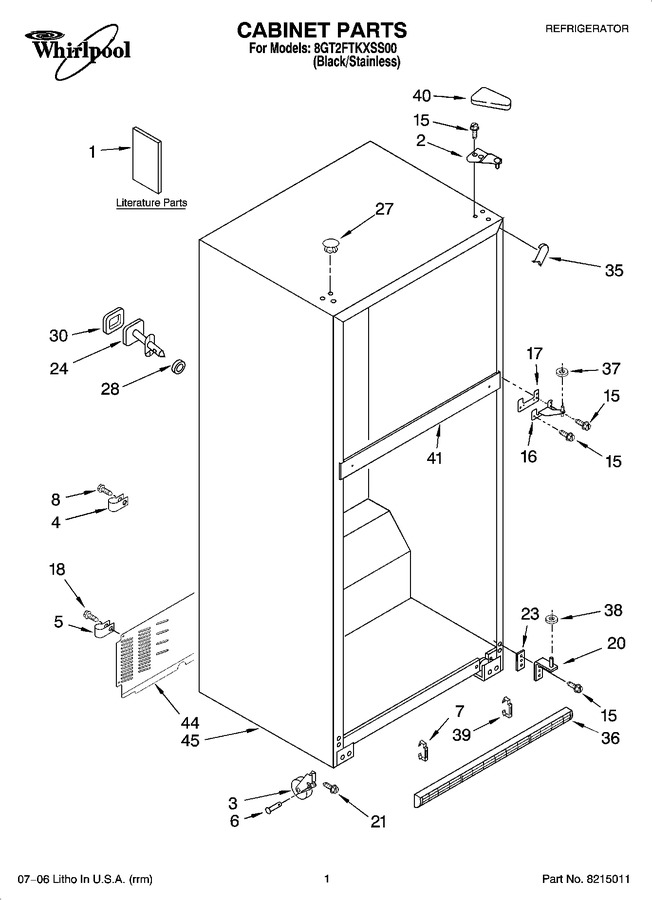

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225759		Service & Wiring Sheet		Appelez-nous	-
1	2302300		Use & Care Guide (english)		Appelez-nous	-
1	2302299		Use & Care Guide (chinese)		Appelez-nous	-
1	677969		Use & Care Guide Following May Be Purchased Do-it-yourself Repair Manuals (do-it-yourself Manual, Ref./fzr.)				$ 30.30
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	489348		Tube Clamp-nylon		Appelez-nous	-
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
7	2189356		Clip-grille				$ 5.70
8	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
20	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
21	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
23	2172743		Shim, Bottom Hinge				$ 33.55
27	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 19.01
35	W11252732		Corner Filler (2) (black)   (Replaces: 2201017)				$ 13.07
36	2254315		Grille (black)				$ 41.54
37	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
39	2189356		Clip-grille				$ 5.70
40	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 19.12
44	2302294		Cover, Unit		Appelez-nous	-
