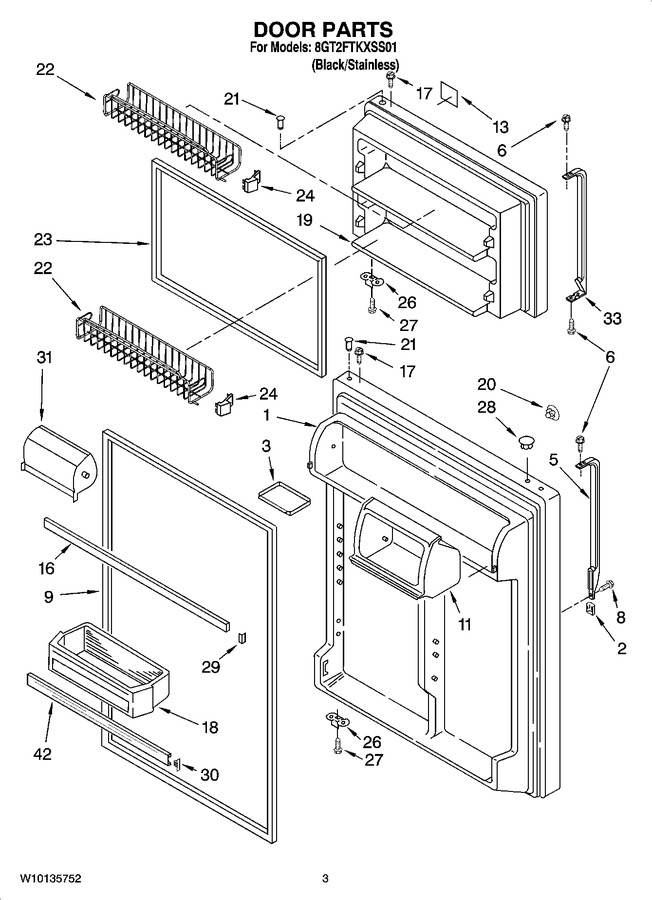

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2218679		Refrigerator Door (includes 9 & 21) (stainless Steel)		Appelez-nous	-
2	2193353B		Cover, End Cap (black (rc))				$ 5.85
3	2195388		Tray-door, Rc		Appelez-nous	-
5	4388950		Handle Center (black (rc))   (Replaces: 2213112B)				$ 235.81
6	8534058		Screw				$ 8.87
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2177311		Door Gasket, Magnetic (black (rc))   (Replaces: 2202882)				$ 330.95
11	2210566		Housing Compt. Rc				$ 65.25
13	2220214		Nameplate (whl Gold Medallion)				$ 32.43
16	2159306		Trim, Door Shelf				$ 53.20
17	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
18	2300425		Door Bin (3)		Appelez-nous	-
19	2218678		Freezer Door (includes Illus. 21 & 23) (stainless Steel)		Appelez-nous	-
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
21	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
22	2300796		Door Basket- Fc				$ 84.50
23	2177310		Door Gasket, Magnetic (black (fc))   (Replaces: 2214969)				$ 335.31
24	2300799		End Cap-fc Bskt.rh				$ 47.65
24	2300798		End Cap-fc Bskt.lh				$ 16.82
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
29	2177340		Plug-trim				$ 5.84
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2218109		Compartment Door				$ 33.66
33	4388950		Handle, F.c. (black)   (Replaces: 2213111B)				$ 235.81
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 114.74
