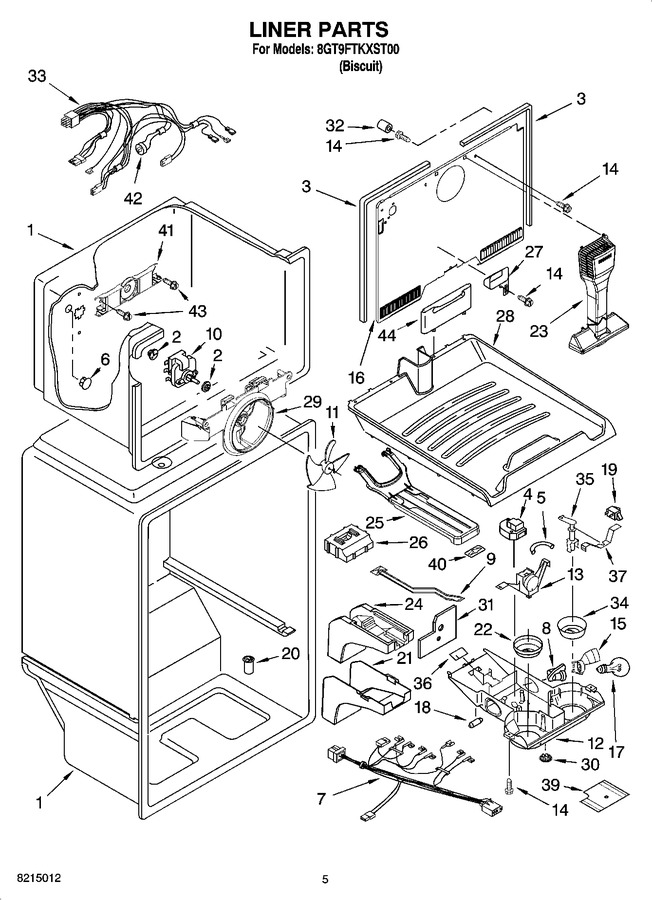

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2264462		Grommet (2)   (Replaces: 2197380)			Immediately	$ 46.17
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254359)				$ 28.12
4	2212769		Defrost Timer		Appelez-nous	-
5	2212485		Thermostat Tube Barrier				$ 5.92
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
7	2310174		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 115.67
9	2179858		Damper, Air		Appelez-nous	-
10	WPW10189703		Fan Motor   (Replaces: 2219660)			Immediately	$ 70.17
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 66.15
12	2302167		Control Box		Appelez-nous	-
13	2210489		Thermostat Assy. (includes Items 5, 18 & 36)				$ 117.12
14	WP489478		Screw   (Replaces: 489478)				$ 8.18
15	WP2175210		Shroud, Light (2)   (Replaces: 2175210)				$ 86.74
16	2254261		Cover-evaporator		Appelez-nous	-
17	4396822		Light Bulb (2)   (Replaces: 850166)			Immediately	$ 13.58
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09
20	WP2210509		Valve, Tube-body   (Replaces: 2210509)				$ 99.15
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 31.91
23	WP2254354		Air Tower   (Replaces: 2254354)				$ 108.24
24	WP2189452		Air Diffuser   (Replaces: 2189452)			Immediately	$ 131.03
25	2225473		Retainer-frzr.flr. Bottom		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
28	2225477		Pull Out Freezer Floor Assy. 18`		Appelez-nous	-
29	2254453		Bracket Fan Motor				$ 45.87
30	940014		Hole Plug, Control Box				$ 18.33
31	2204639		Shield, Heat		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	2187990		Wire Assembly Freezer Compt. (includes Item 42)		Appelez-nous	-
34	2302536		Knob, Damper				$ 27.08
35	2179859		Post, Damper		Appelez-nous	-
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 10.01
37	2163810		Bracket, Damper Knob				$ 6.01
39	2201082		Shield, Heat		Appelez-nous	-
40	2176341		Clip, Defrost		Appelez-nous	-
41	2254454		Bracket, Evap. Fan, Rear			Immediately	$ 75.44
42	WP4387503		Defrost, Bi-metal Timer   (Replaces: 2221677)			Immediately	$ 47.89
43	WP488163		Screw (2)   (Replaces: 488208)				$ 7.92
44	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
