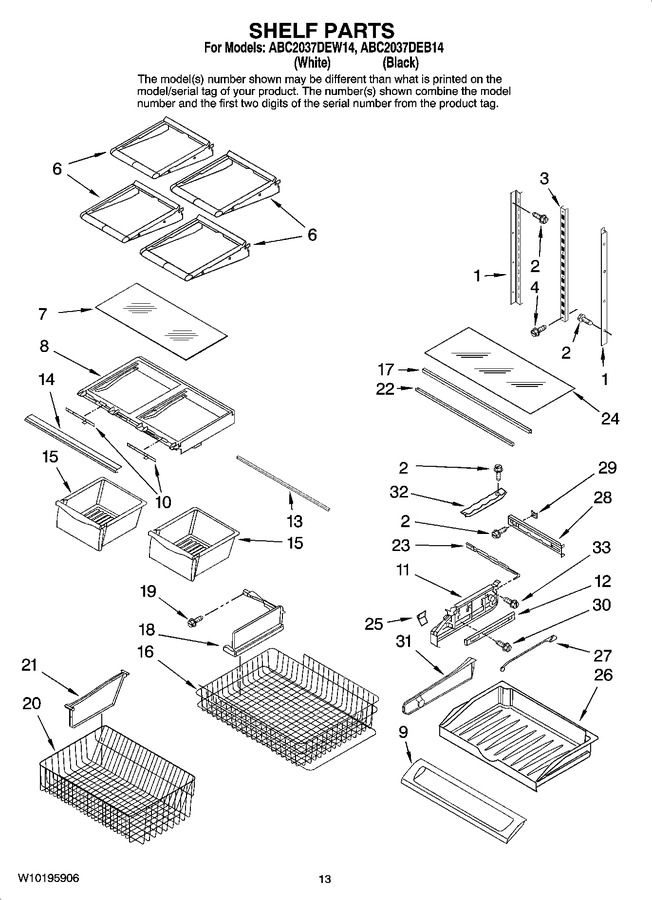

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67002489 | Ladder, Side |
|
$ 71.09 | |||||
| 2 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 4 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 6 | 67004801 | Shelf, Glide (4) |
|
- | |||||
| 7 | WP67006655 | Glass (Replaces: 67006655) |
|
Immediately | $ 248.69 | ||||
| 8 | WPW10568041 | Frame, Crisper (Replaces: 67001056) |
|
Immediately | $ 157.90 | ||||
| 9 | W10827015 | Lid, Pantry (Replaces: 67005910) |
|
Immediately | $ 197.21 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 11 | WP12656018 | Endcap, Pantry (right) (Replaces: 67005857) |
|
Immediately | $ 61.09 | ||||
| 11 | WP12656105 | Endcap, Pantry (left) (Replaces: 67005862) |
|
Immediately | $ 58.41 | ||||
| 12 | WPW10235370 | Glide-pantry (Replaces: 67007026) |
|
Immediately | $ 298.06 | ||||
| 13 | WP12227304WD | Brace Frame (Replaces: 67002488) |
|
$ 108.69 | |||||
| 14 | 67004852 | Trim, Crisper |
|
- | |||||
| 15 | 67005908 | Pan, Crisper (2) |
|
$ 65.36 | |||||
| 16 | 67004988 | Basket, Freezer (upper) |
|
- | |||||
| 17 | W11812285 | Extrsuion, Support (Replaces: 67006010) |
|
$ 53.33 | |||||
| 18 | 67004127 | Divider, Upper Basket |
|
$ 10.10 | |||||
| 19 | 67006608 | Screw |
|
- | |||||
| 20 | W10503185 | Basket, Freezer (lower) (Replaces: 67006026) |
|
$ 156.98 | |||||
| 21 | 67004812 | Divider, Lower Basket |
|
- | |||||
| 22 | WP12227305WD | Brace, Pantry (Replaces: 67002330) |
|
$ 108.36 | |||||
| 23 | WP67003793 | Slide, Pantry (Replaces: 67003793) |
|
Immediately | $ 78.49 | ||||
| 24 | WP67002332 | Glass, Pantry (Replaces: 67002332) |
|
Immediately | $ 251.30 | ||||
| 25 | W11498983 | Knob, Contrl (Replaces: 67003791) |
|
$ 30.64 | |||||
| 26 | W11490183 | Drawer, Pantry (Replaces: 67003530) |
|
$ 144.29 | |||||
| 27 | 67003794 | Bar, Control |
|
$ 13.82 | |||||
| 28 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 148.84 | |||||
| 29 | 67002329 | Gasket, Pantry |
|
$ 22.09 | |||||
| 30 | WP67006415 | Screw (Replaces: 67006415) |
|
$ 8.38 | |||||
| 31 | WP67002321 | Divider, Pantry (Replaces: 67002321) |
|
$ 33.79 | |||||
| 32 | WP67001719 | Track, Pantry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 33 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 |
