View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts

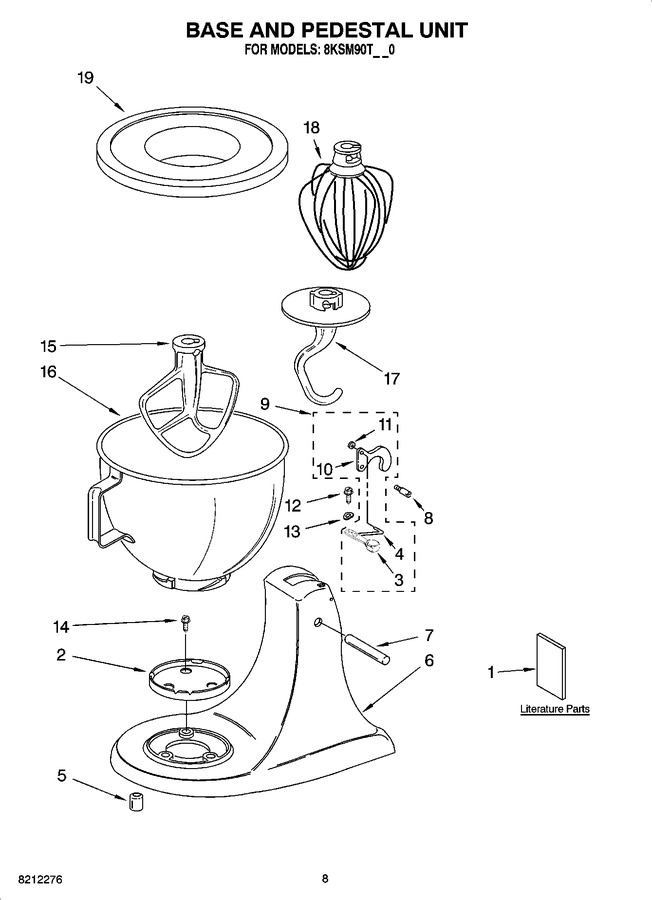

04 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8212276 | Repair Parts List |
|
- | |||||
| 1 | 9709309 | Use & Care Guide |
|
- | |||||
| 2 | WPW10191926 | Screw Cap Kit (Replaces: 4162529) |
|
Immediately | $ 19.03 | ||||
| 3 | WP9709267 | Lever, Latch (black) (Replaces: 9709267) |
|
$ 4.00 | |||||
| 4 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 5 | WP9709707 | Foot, Base (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 7 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 8 | 103993 | Screw, Latch Bearing |
|
$ 24.95 | |||||
| 9 | WP3184200 | Latch, Link & Lever (Replaces: 3184200) |
|
$ 13.44 | |||||
| 10 | W11246352 | Latch (Replaces: 9709055) |
|
$ 8.57 | |||||
| 11 | W11218705 | Washer (Replaces: WS02903) |
|
$ 4.55 | |||||
| 12 | 6011-006971 | Screw, Pivot (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 15 | WPW10672617 | Beater, Flat (Replaces: 9708470) |
|
Immediately | $ 24.92 | ||||
| 16 | W10802058 | Bowl And Base (4 1/2 Qt.) (Replaces: 4163336) |
|
$ 103.12 | |||||
| 17 | WPW10674618 | Dough Hook (Replaces: 9708471) |
|
Immediately | $ 31.90 | ||||
| 18 | WP9704329 | Wire Whip (Replaces: 9706446) |
|
Immediately | $ 29.90 | ||||
| 19 | 9709248 | Cover, Bowl |
|
- | |||||
| 8211924 | Grain Mill, Kgma |
|
- | ||||||
| 4164839 | Speed Disc (service Tool) |
|
- | ||||||
| 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | ||||||
| 3180617 | Cover, Decorative (cotton Polyester) |
|
- | ||||||
| 4162838 | Food Tray (ft) |
|
- | ||||||
| 4164748 | Juicer, Je |
|
- | ||||||
| 4164747 | Can Opener, Co |
|
- | ||||||
| 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | ||||||
| 3177924 | Bowl Cover, Plastic Non-sealing |
|
- | ||||||
| W10802058 | Bowl, Stainless With Handle (Replaces: 4163337) |
|
$ 103.12 | ||||||
| 3180262 | Bowl, 3 Qt. (ksm103 & Ksm110) |
|
$ 68.75 | ||||||
| W10802058 | Bowl, Satin Stainless (Replaces: 4162160) |
|
$ 103.12 | ||||||
| W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | |||||
| 9707963 | Ice Cream Attachment - Kica |
|
- | ||||||
| 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a)) |
|
- | ||||||
| 4164749 | Food Grinder (fg-a) |
|
- | ||||||
| 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | ||||||
| FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | ||||||
| RVSA | Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa) (Replaces: 4164750) |
|
$ 115.50 | ||||||
| W11312468 | Pouring Shield (kps2cl) (Replaces: 3177975) |
|
$ 43.26 | ||||||
| 4164824 | Pasta Maker Plates Snpa |
|
- |
