Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 689250 Top (almond) Appelez-nous -
8 WP688805 Clip   (Replaces: 688805) In-Stock Immediately $ 8.20

9 307563 Rivet, Pop (2) Appelez-nous -
20 WP8563881 Timer, 60 Hz.   (Replaces: 9830837) Special Order $ 367.99

22 348171 Bracket, Timer Appelez-nous -
23 W11808444 Screw, 8-32 X 5/16 (2)   (Replaces: 98139) Appelez-nous -
29 WPW10139210 Screw, 8-18 X 5/16   (Replaces: 3390646) Special Order $ 8.03

31 9831667 Panel, Control (almond) Appelez-nous -
32 9831680 Timer Knob & Dial (almond) Appelez-nous -
34 WP3390631 Screw, 10-16 X 3/8   (Replaces: 3390631) Special Order $ 8.25

36 9831692 Switch, Push-to-start Appelez-nous -
37 WP3957800 Knob, Push-to-start (almond)   (Replaces: 3396164) Special Order $ 52.92

51 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47


    View Diagram in Separate Window     Print Icon   Print Part List

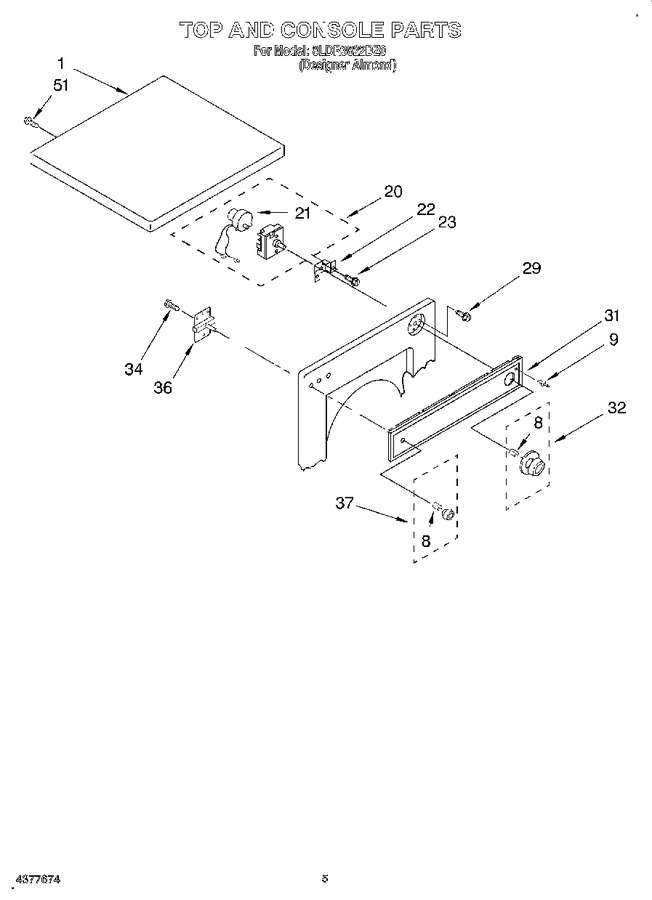

Diagram for 8LDR3822DZ0
