SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

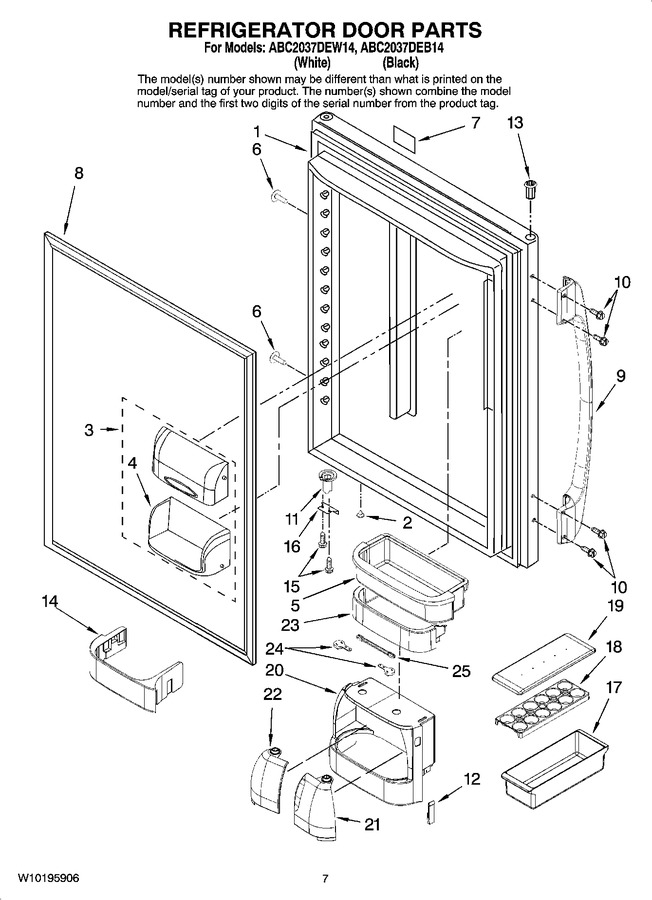

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658532BQ		Refrigerator Door (w/ Insulation) (black)   (Replaces: 67005143)				$ 707.10
1	12658532WQ		Refrigerator Door (w/ Insulation) (white)   (Replaces: 67005066)				$ 674.22
2	67004838		Plug, Vent (black)				$ 11.21
2	10712401		Plug, Vent (white)				$ 7.79
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67003769		Bucket (2) Large		Appelez-nous	-
6	67007166		Screw,handle Hole (black)		Appelez-nous	-
6	12991103		Screw, Handle Hole (white)				$ 12.03
7	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
8	W10443317		Gasket, Door Magnetic (white)   (Replaces: W10133418)				$ 366.79
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	67006805		Handle, Door (black)		Appelez-nous	-
9	67006721		Handle, Door (white)		Appelez-nous	-
10	67006668		Screw				$ 12.83
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
11	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
12	67004602		Hook, Chiller		Appelez-nous	-
13	67004978		Bushing (black)				$ 22.10
13	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 8.20
14	67004717		Retainer, Chiller				$ 26.59
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
16	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 69.29
17	10423131		Bin, Utility				$ 31.13
18	10436404		Lid, Utility				$ 60.85
19	10436506		Tray, Egg				$ 8.28
20	67004720		Frame, Chiller		Appelez-nous	-
21	67004598		Door, Rh Chiller				$ 36.77
22	67004599		Door, Lh Chiller		Appelez-nous	-
23	67004721		Bucket, Chiller		Appelez-nous	-
24	67002293		Linkeage				$ 11.76
25	67004601		Center, Linkeage		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
