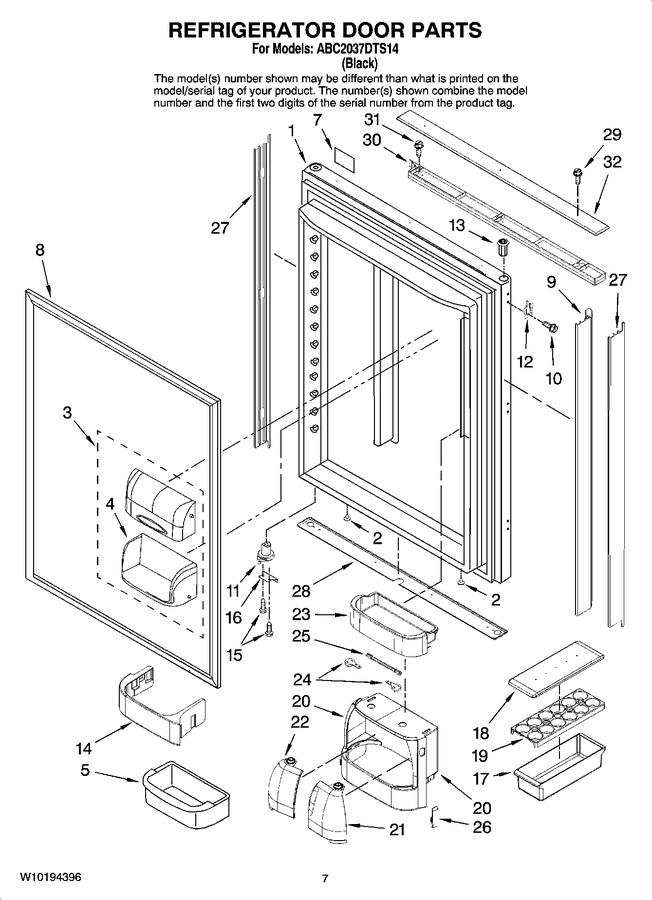

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002116		Refrigerator Door (w/ Insulation) (black)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67003769		Bucket (2) Large		Appelez-nous	-
7	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	67006130		Handle, Door Rh (stainless Steel)		Appelez-nous	-
10	WP489128		Screw   (Replaces: 67006767)				$ 11.40
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
12	67002451		Clip, Handle (6)				$ 8.86
13	67004978		Bushing (black)				$ 22.10
14	67004717		Retainer, Chiller				$ 26.59
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
17	10423131		Bin, Utility				$ 31.13
18	10436404		Lid, Utility				$ 60.85
19	10436506		Tray, Egg				$ 8.28
20	67004720		Frame, Chiller		Appelez-nous	-
21	67004598		Rh Door Chiller				$ 36.77
22	67004599		Lh Door Chiller		Appelez-nous	-
23	67004721		Bucket, Chiller		Appelez-nous	-
24	67002293		Linkeage				$ 11.76
25	67004601		Center, Linkeage		Appelez-nous	-
26	67004602		Hook, Chiller		Appelez-nous	-
27	67006513		Trim, Vertical (right)				$ 134.98
27	67006228		Trim, Vertical (left)				$ 147.89
28	12521108S1		Trim, Bottom		Appelez-nous	-
29	WP3400805		Screw   (Replaces: 67006769)				$ 7.55
30	12059103		Extension Door		Appelez-nous	-
31	WP489474		Screw   (Replaces: W10164192)			Immediately	$ 8.55
32	12521109S1		Trim, Top				$ 97.37
