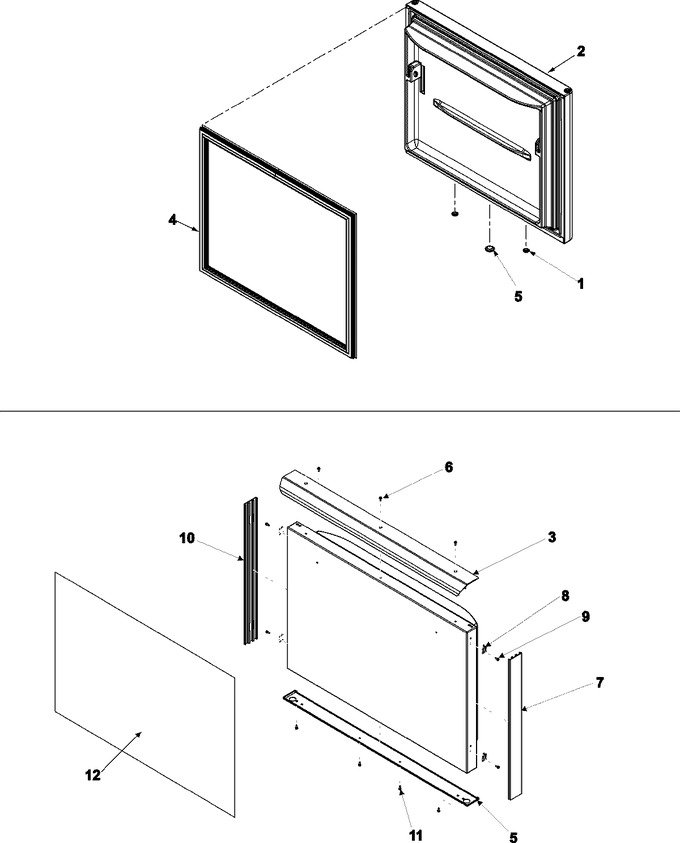

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10712401		Plug, Vent (wht)	10			$ 7.79
2	WP67003638		Closure, Door (wht)   (Replaces: 67003638)	10		Immediately	$ 8.15
2	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 90.32
2	12991101		Screw, Sm   (Replaces: M0210816)	10			$ 13.47
2	12991101		Screw, Sm Hex Head   (Replaces: 67006408)	13			$ 13.47
2	67002424		Door Assy., Frz. Foam (wht)		Appelez-nous	-
3	67002944		Handle, Fz Dr (wht)	10	Appelez-nous	-
4	67003558		Gasket, Fz Door (wht)	10	Appelez-nous	-
5	12521108S1		Trim-horizontal Btm (stnls)	13	Appelez-nous	-
5	67002183		Trim, Door Bottom (wht)	10	Appelez-nous	-
5	67002241		Trim, Door Bottom (blk)	13	Appelez-nous	-
6	WP12990902		Screw, Sm (blk)   (Replaces: 67007042)	13			$ 15.90
6	67003215		Screw, Sm (wht)	10			$ 14.03
7	67002434		Trim, Vert Fz Dr Right (wht)		Appelez-nous	-
7	67002242		Trim, Vert Ref/fz Dr (blk)	10	Appelez-nous	-
8	67002451		Clip				$ 8.86
9	WP489128		Screw   (Replaces: 67006767)	13			$ 11.40
9	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
10	67002433		Trim, Vert Fz Dr Left (wht)		Appelez-nous	-
10	67006043		Trim, Door (side-stnls)	13	Appelez-nous	-
11	WP3400805		Screw   (Replaces: 67006769)	13			$ 7.55
11	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
12	67005159		Panel, Door Fz Btm		Appelez-nous	-
