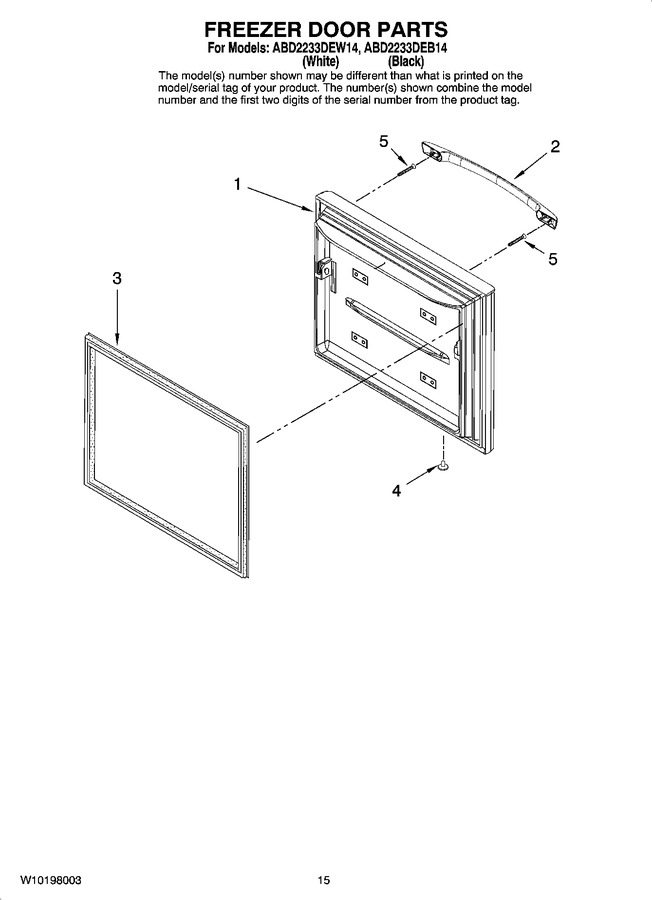

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170997		Door, Freezer (white)		Appelez-nous	-
1	W10170998		Door, Freezer (black)		Appelez-nous	-
2	W10119666		Handle, Door (white)				$ 104.36
2	WPW10119668		Handle, Door (black)   (Replaces: W10119668)				$ 189.04
3	W10443315		Gasket, Door (white)   (Replaces: W10130894)				$ 193.98
3	WPW10436250		Gasket, Door (black)   (Replaces: W10130587)			Immediately	$ 347.99
4	10712401		Plug, Button (2) (white)				$ 7.79
4	67004838		Plug, Button (2) (black)				$ 10.68
5	WP12992902		Screw   (Replaces: 12992902)				$ 11.07
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	2217192		Cleaner, Stainless Steel		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (black Uncut))				$ 237.46
	350942		Paint, Pressurized Spray (12 Oz) (primer, White)				$ 89.66
	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 38.21
	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 57.04
	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
