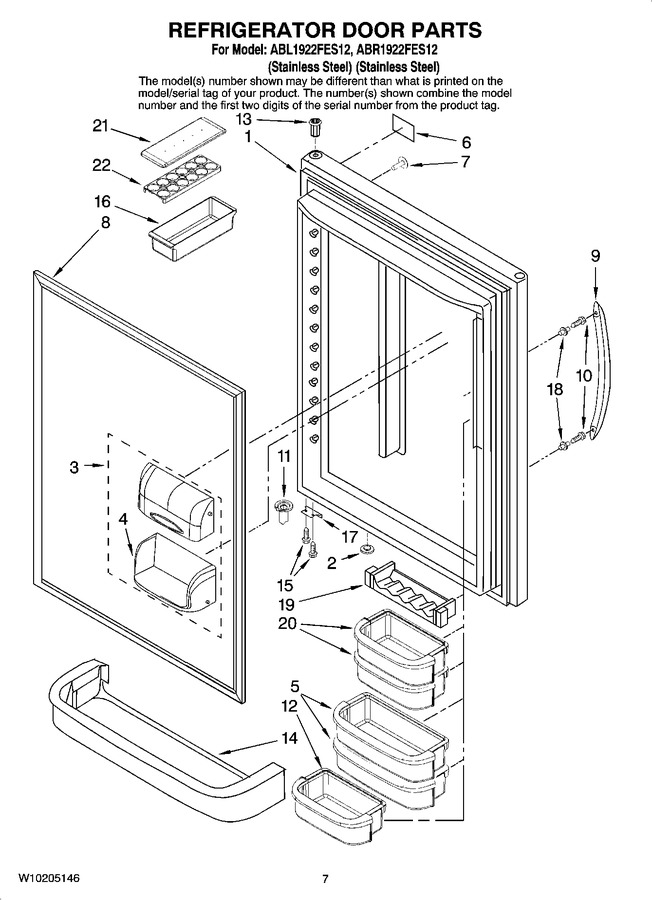

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203482 | Refrigerator Door (w/ Insulation) Stainless Steel (left) |
|
- | |||||
| 1 | W10182772 | Refrigerator Door (w/ Insulation) Stainless Steel (right) |
|
- | |||||
| 2 | 67004838 | Plug, Vent (black) |
|
$ 10.68 | |||||
| 3 | WP12744905 | Door, Compartment (Replaces: 67003819) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67001021 | Bucket (2) (medium) (Replaces: 67001021) |
|
$ 80.90 | |||||
| 6 | Y12528501 | Nameplate |
|
Immediately | $ 59.75 | ||||
| 7 | WP12246608 | Plug, Button (2) (black) (Replaces: 67001131) |
|
Immediately | $ 7.76 | ||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: 12683815B) |
|
$ 345.10 | |||||
| 9 | W10159105 | Handle, Door (stainless Steel) |
|
$ 173.31 | |||||
| 10 | WP3387230 | Screw (Replaces: 67002935) |
|
Immediately | $ 8.54 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 86.02 | |||||
| 12 | 67004124 | Bucket (1) (short) |
|
- | |||||
| 13 | 67004978 | Bushing (black) |
|
$ 21.05 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 67001296) |
|
Immediately | $ 99.80 | ||||
| 15 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 16 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 18 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 11.96 | ||||
| 19 | WP67005626 | Caddy, Can (Replaces: 67005626) |
|
$ 77.61 | |||||
| 20 | 67001141 | Bucket (2) Small |
|
Immediately | $ 75.15 | ||||
| 21 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 22 | 10436506 | Tray, Egg |
|
$ 8.28 |
