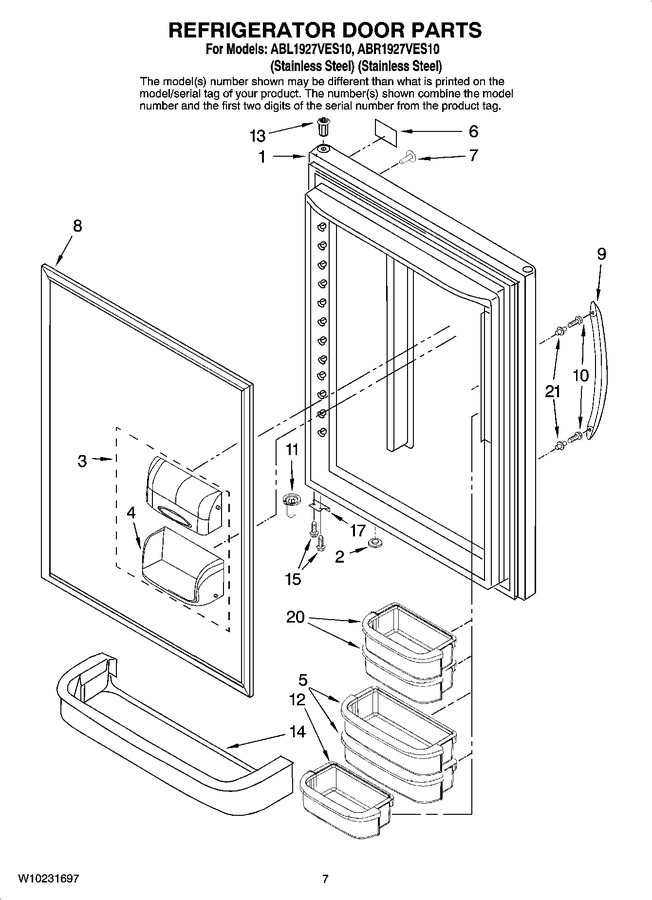

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023847SQ | Refrigerator Door (w/liner) (left) |
|
$ 498.94 | |||||
| 1 | 13023846SQ | Refrigerator Door (w/liner) (right) |
|
- | |||||
| 2 | 67004838 | Plug, Vent |
|
$ 11.21 | |||||
| 3 | WP12744905 | Door, Dairy (Replaces: 67003819) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371193 | Bucket, Medium (2) (Replaces: 67003775) |
|
Immediately | $ 74.80 | ||||
| 6 | Y12528501 | Nameplate |
|
Immediately | $ 62.74 | ||||
| 7 | WP12246608 | Plug, Button (black) (Replaces: 67001131) |
|
Immediately | $ 8.15 | ||||
| 8 | WPW10436245 | Door Gasket, Magnetic (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 9 | W10136873 | Door Handle (black) |
|
$ 99.41 | |||||
| 10 | 67006901 | Screw, Handle |
|
Immediately | $ 9.49 | ||||
| 11 | WP67003639 | Closure, Door (Replaces: 67003639) |
|
$ 90.32 | |||||
| 12 | 67001141 | Bucket (short) (Replaces: 67004276) |
|
Immediately | $ 78.91 | ||||
| 13 | 67004978 | Bushing (black) |
|
$ 22.10 | |||||
| 14 | 67001139 | Retainer, Door |
|
Immediately | $ 104.79 | ||||
| 15 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 17 | W11708403 | Stop, Door (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 20 | 67003774 | Bucket, Small (2) |
|
- | |||||
| 21 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 12.56 |
