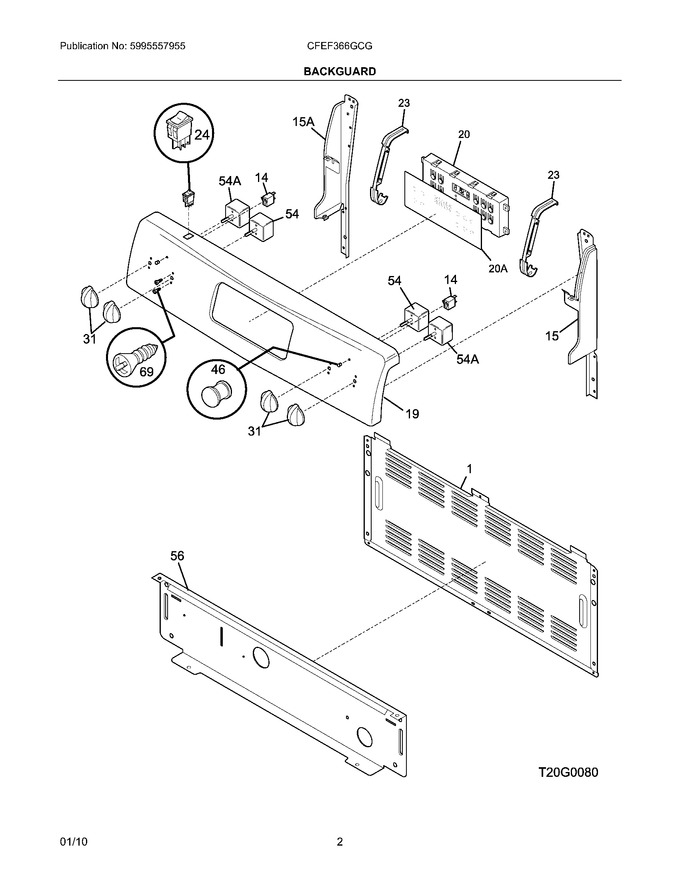

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 64.04
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 59.52
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316456501		Panel,control,stainless		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 22.75
31	316223002		Knob,control ,black			Immediately	$ 64.04
46	316437900		Lens,indicator Light				$ 11.45
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 74.15
69	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419141		Overlay,clock ,black ,es300   (Replaces: 316419103)			Immediately	$ 63.19
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316557100)			Immediately	$ 235.97
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316448700)			Immediately	$ 12.64
F54	316436000		Switch,infinite ,small Element			Immediately	$ 89.27
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 57.42
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
