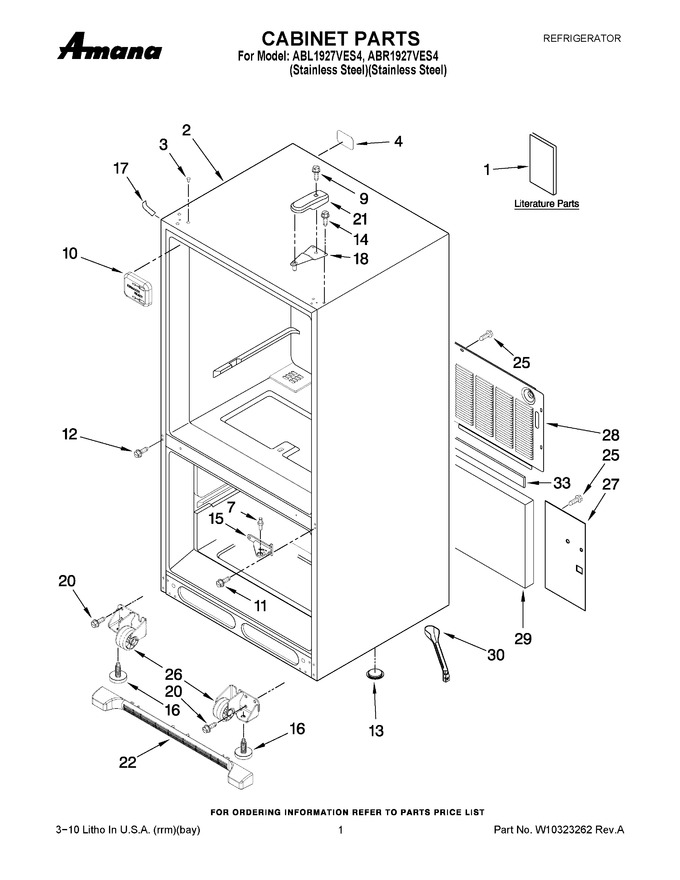

01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Freezer Liner Parts
03 - Freezer Liner Parts

Diagram for 04 - Refrigerator Door Parts
04 - Refrigerator Door Parts

Diagram for 05 - Freezer Door Parts
05 - Freezer Door Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Unit Parts
07 - Unit Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10208785 Owners Manual Appelez-nous -
1 W10308611 Tech Sheet Appelez-nous -
1 W10205984 Energy Tag Appelez-nous -
2 N/P Cabinet (not A Servicable Part) Appelez-nous -
3 WP12246608 Plug, Button (3) (black)   (Replaces: M0310731) In-Stock Immediately $ 7.76

4 W11685757 Label, Fill Tube   (Replaces: 12249902) Special Order $ 7.06

7 WP67006642 Pin, Center Hinge   (Replaces: 10351006) Special Order $ 7.93

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 7.19

10 WP67001098 Cover-fill Tube   (Replaces: 12477501) Special Order $ 8.03

11 W11573362 Screw   (Replaces: 12992201) Special Order $ 14.02

12 WP98165 Screw (8)   (Replaces: 12990521) Special Order $ 8.00

13 A3076901 Plug-button Special Order $ 5.70

14 WP489349 Screw (3)   (Replaces: 12992403) In-Stock Immediately $ 7.88

15 WP12607104ED Hinge, Center (black)   (Replaces: 12607104ED) Special Order $ 152.73

16 WPW10141622 Foot Brake (2)   (Replaces: W10141622) In-Stock Immediately $ 7.85

17 67003485 Cover, Corner (black )   (Replaces: 12587703B) In-Stock Immediately $ 21.09

18 WP12566606ED Hinge, Top   (Replaces: 12566606ED) In-Stock Immediately $ 44.89

20 67006564 Screw (8)   (Replaces: 12991302) In-Stock Immediately $ 7.69

21 67001012 Cover, Hinge (black)   (Replaces: 12477601B) Special Order $ 47.34

22 WPW10534167 Grille Assembly (includes Clips) (black)   (Replaces: W10236650) Special Order $ 91.42

25 67006425 Screw (9)   (Replaces: 12990511) In-Stock Immediately $ 6.95

26 W11820444 Roller Assembly (left)   (Replaces: W10275850) In-Stock Immediately $ 35.57

26 W11820445 Roller Assembly (right)   (Replaces: W10275849) In-Stock Immediately $ 35.57

27 W11684617 Cover, Water Valve   (Replaces: W10217701) Special Order $ 20.34

28 W10210978 Cover, Unit Special Order $ 192.17

29 12820505 Insulation, Sound Special Order $ 71.70

30 W10619951 Tube, Drain   (Replaces: W10210987) In-Stock Immediately $ 42.39

33 B5759655 Gasket Special Order $ 12.41
