Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10203482 Refrigerator Door (w/ Insulation) (stainless Steel Lh) Appelez-nous -
1 W10182772 Refrigerator Door (w/ Insulation) (stainless Steel Rh) Appelez-nous -
2 67004838 Plug, Vent (black) Special Order $ 10.68

3 WP12744905 Door, Compartment   (Replaces: 67003819) Special Order $ 108.56

4 WP67001279 Tray, Dairy   (Replaces: 67001279) In-Stock Immediately $ 83.82

5 WP67001021 Bucket (2) (medium)   (Replaces: 67001021) Special Order $ 80.90

6 Y12528501 Nameplate   (Replaces: 12528501) In-Stock Immediately $ 59.75

7 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 11.96

8 WPW10436245 Gasket, Door Magnetic (black)   (Replaces: W10164031) Special Order $ 345.10

9 W10159105 Handle, Door (stainless Steel) Special Order $ 173.31

10 WP3387230 Screw   (Replaces: 67002935) In-Stock Immediately $ 8.54

11 67004978 Bushing (black) Special Order $ 21.05

12 67001139 Retainer, Door   (Replaces: 67001296) In-Stock Immediately $ 99.80

13 10423131 Bin, Utility Special Order $ 31.13

14 10436506 Tray, Egg Special Order $ 8.28

15 10436404 Lid, Utility Special Order $ 60.85

16 67001141 Bucket (2) Small In-Stock Immediately $ 75.15


    View Diagram in Separate Window     Print Icon   Print Part List

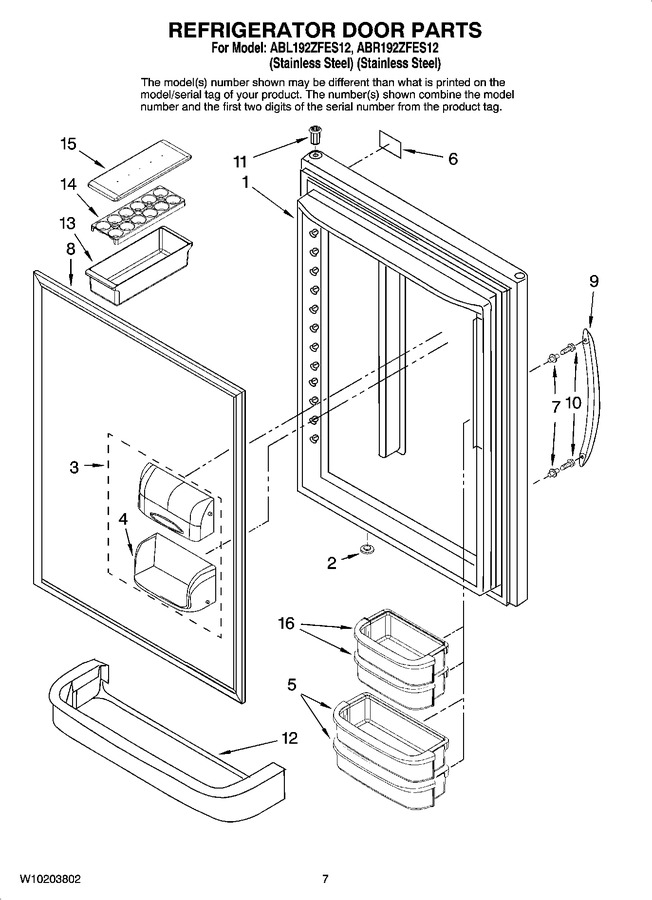

Diagram for ABL192ZFES12
