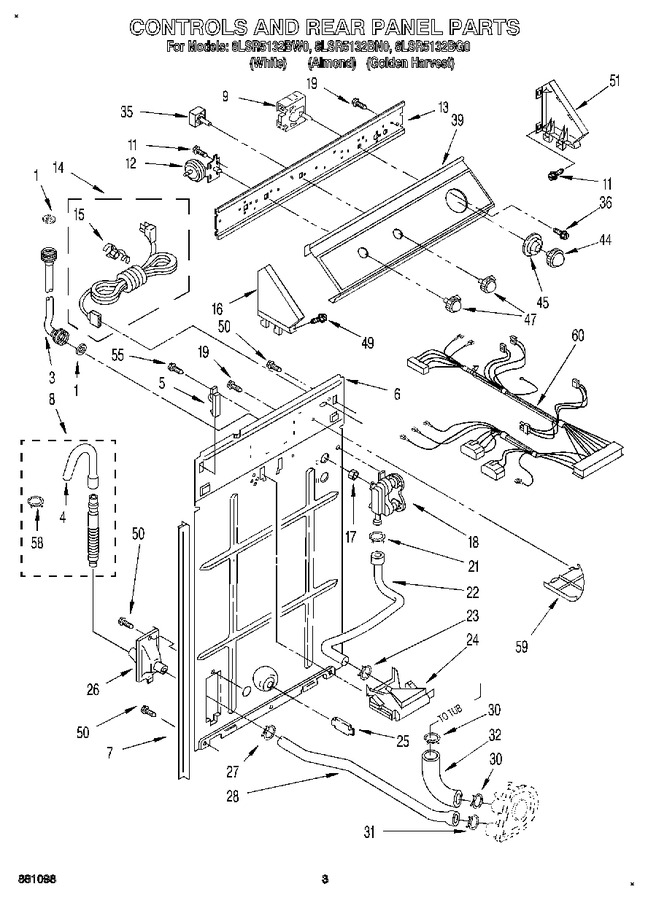

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3354858)			Immediately	$ 24.09
4	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
5	387402		Hinge, Console (2)				$ 5.84
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	285666		Hose, Drain (9`- 9``) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4`- 8``)   (Replaces: 661575)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 63.94
9	285952		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3351734)				$ 375.38
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	WP3356467		Switch, Water Level   (Replaces: 3356468)				$ 178.70
13	WP3948608		Bracket, Control   (Replaces: 3360936)				$ 122.00
14	3360514		Cord, Power		Appelez-nous	-
15	W11733005		Strain Relief, Power Cord   (Replaces: 63848)				$ 13.58
16	3358532		Cap, End (l.h.) (almond/chrome)		Appelez-nous	-
16	3358531		Cap, End (l.h.) (white/chrome)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 12.30
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 55.08
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 7.30
21	WP596669		(alt.)   (Replaces: 353367)			Immediately	$ 8.82
21	WP596669		(alt.)   (Replaces: 272846)			Immediately	$ 8.82
21	WP596669		Clamp, Hose   (Replaces: 660632)			Immediately	$ 8.82
22	WP3357328		Hose, Vacuum Break   (Replaces: 3357328)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
26	WPW10358149		Connector, Drain Hose   (Replaces: 3355497)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 89.09
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 12.31
31	WP285655		(alt.)   (Replaces: 272858)			Immediately	$ 8.81
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 8.81
31	WP285655		(alt.)   (Replaces: 353097)			Immediately	$ 8.81
31	WP285655		(alt.)   (Replaces: 370447)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 28.99
35	334711		(alt.)		Appelez-nous	-
35	661538		Switch, Water Temperature		Appelez-nous	-
35	334835		(alt.)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 9.26
39	3359236		Panel, Console (for White Model)		Appelez-nous	-
39	3359237		Panel, Console (for Almond Model)		Appelez-nous	-
44	WP3364293		Knob, Timer   (Replaces: 3358416)			Immediately	$ 62.42
45	280193		Dial, Timer   (Replaces: 3358446)				$ 59.92
47	WP8538957		Knob, Control   (Replaces: 3358431)				$ 58.53
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 3353145)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	3358516		Cap, End (r.h.) (white/chrome)		Appelez-nous	-
51	3358517		Cap, End (r.h.) (almond/chrome)		Appelez-nous	-
55	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
58	WP3357331		Clamp, Drain Hose   (Replaces: 3357331)				$ 8.19
59	3348424		Sheild, Suds		Appelez-nous	-
60	3359830		Harness, Wiring (for Detail See Wiring Harness Parts Page) Also See Clips.		Appelez-nous	-
