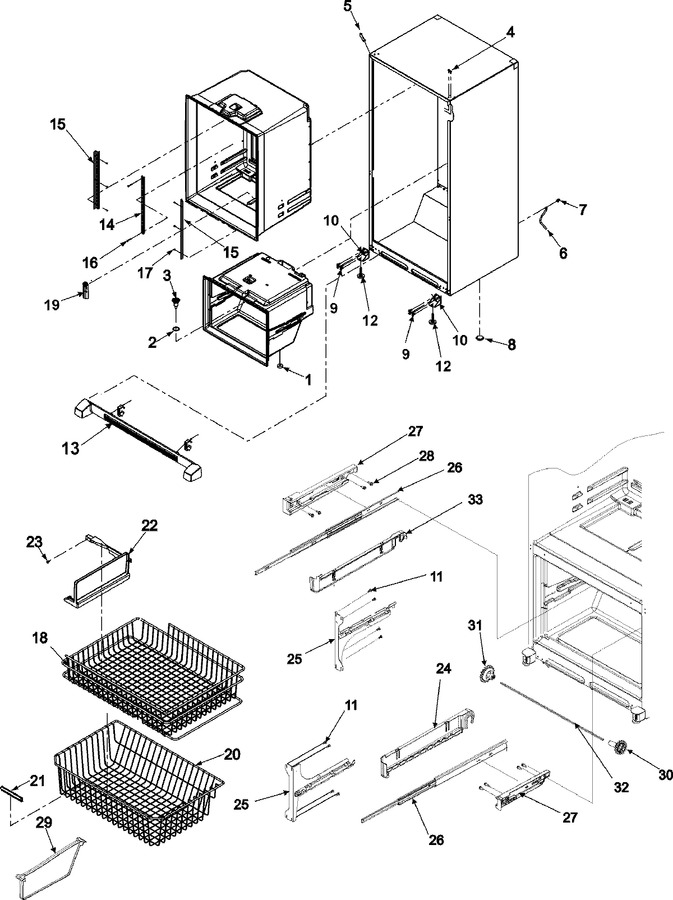

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) | 10 |
|
$ 7.41 | ||||
| 2 | WPM0500703 | Seal, O Ring (Replaces: M0500703) | 10 |
|
$ 10.92 | ||||
| 3 | W10815413 | Funnel, Drain (Replaces: D7753903) | 10 |
|
Immediately | $ 49.05 | |||
| 4 | A4539607 | Pop Rivet | 10 |
|
- | ||||
| 5 | 67003485 | Cover, Corner (blk) | 10 |
|
Immediately | $ 21.09 | |||
| 6 | 67001066 | Tube, Drain | 10 |
|
$ 55.82 | ||||
| 7 | 67001067 | Clip, Drain Tube | 10 |
|
$ 9.20 | ||||
| 8 | A3076901 | Plug-button | 10 |
|
$ 5.70 | ||||
| 9 | 67006564 | Screw, Sm/hex | 10 |
|
Immediately | $ 7.69 | |||
| 10 | 12906303WD | Bracket, Foot Cabinet (Replaces: 67007174) | 10 |
|
$ 84.36 | ||||
| 11 | WP98165 | Screw Sm/hex (Replaces: 67006473) | 10 |
|
$ 8.00 | ||||
| 12 | W11177593 | Brake, Foot (Replaces: 67003868) | 10 |
|
$ 11.60 | ||||
| 13 | WPW10534153 | Grille, Toe (blk) (Replaces: 67006375) | 10 |
|
$ 147.21 | ||||
| 13 | 12627302 | Clip, Toe Grille | 10 |
|
$ 5.84 | ||||
| 14 | 67001073 | Ladder, Center | 10 |
|
$ 54.18 | ||||
| 15 | 67002489 | Ladder, L/r Side | 10 |
|
$ 71.09 | ||||
| 16 | W10709795 | Screw (Replaces: 67006360) | 10 |
|
$ 13.13 | ||||
| 17 | 67006425 | Screw, Sm (Replaces: 67006400) | 10 |
|
Immediately | $ 6.95 | |||
| 18 | 67004988 | Basket, Frz. (upr) | 10 |
|
- | ||||
| 19 | 67006110 | Cover, Chiller Vent | 10 |
|
- | ||||
| 20 | W10503185 | Basket, Frz. (lwr) (Replaces: 67006026) | 10 |
|
$ 149.50 | ||||
| 21 | 10508506 | Handle, Basket/shelf | 10 |
|
- | ||||
| 22 | 67004127 | Divider, Basket (upper) | 10 |
|
$ 10.10 | ||||
| 23 | 67006608 | Screw | 10 |
|
- | ||||
| 24 | W10251557 | Cradle, Basket (rt) (Replaces: 67004729) | 10 |
|
$ 102.24 | ||||
| 25 | WPW10330993 | Bracket, Drawer Slide (rt) (Replaces: 67004733) | 10 |
|
$ 158.18 | ||||
| 25 | WPW10330991 | Bracket, Drawer Slide (lt) (Replaces: 67004732) | 10 |
|
$ 156.49 | ||||
| 26 | 67006913 | Slide, Drawer | 10 |
|
- | ||||
| 27 | 67004972 | Adapter (rt) | 10 |
|
$ 30.98 | ||||
| 28 | WP489474 | Screw, Sm/hex Head (Replaces: 67006406) | 10 |
|
Immediately | $ 7.97 | |||
| 29 | 67004812 | Divider, Basket (lwr) | 10 |
|
- | ||||
| 30 | 12002497 | Gear, Spur Rh (Replaces: 67006407) | 10 |
|
Immediately | $ 22.51 | |||
| 31 | 12002497 | Gear (rt) (Replaces: 67004430) | 10 |
|
Immediately | $ 22.51 | |||
| 32 | W11028221 | Shaft, Rack (Replaces: 67004017) | 10 |
|
$ 31.66 | ||||
| 33 | W10251557 | Cradle, Basket (lt) (Replaces: 67004728) | 10 |
|
$ 102.24 | ||||
| 27A | W10284690 | Adapter (lt) (Replaces: 67004971) | 10 |
|
$ 73.76 |
