SELECT A DIAGRAM

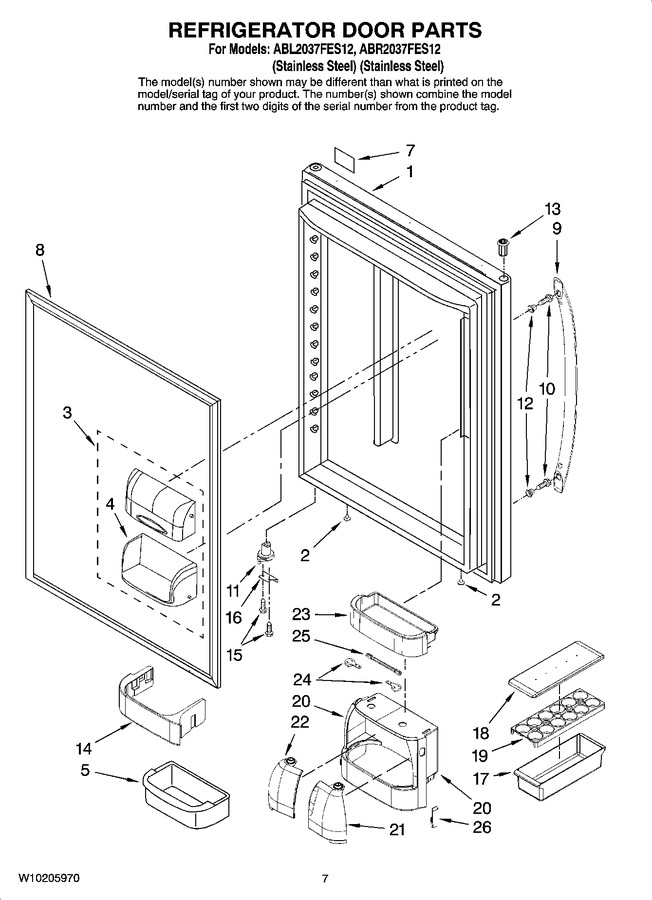

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202329		Refrigerator Door (w/ Insulation) (right, Stainless)		Appelez-nous	-
1	W10206750		Refrigerator Door (w/ Insulation) (left, Stainless)		Appelez-nous	-
2	67004838		Plug, Vent (black)   (Replaces: W10153326)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67003769		Bucket (2) Large		Appelez-nous	-
7	Y12528501		Nameplate			Immediately	$ 62.74
8	W10849442		Gasket, Door Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	W10136873		Handle (stainless Steel)				$ 99.41
10	WP3387230		Screw, Handle   (Replaces: 67002935)			Immediately	$ 8.54
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
12	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
13	67004978		Bushing (black)				$ 22.10
14	67004717		Retainer, Chiller				$ 26.59
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
17	10423131		Bin, Utility				$ 31.13
18	10436404		Lid, Utility				$ 60.85
19	10436506		Tray, Egg				$ 8.28
20	67004720		Frame, Chiller		Appelez-nous	-
21	67004598		Rh Door Chiller				$ 36.77
22	67004599		Lh Door Chiller		Appelez-nous	-
23	67004721		Bucket, Chiller		Appelez-nous	-
24	67002293		Linkage, Chiller				$ 11.76
25	67004601		Center, Linkage		Appelez-nous	-
26	67004602		Hook, Chiller		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
