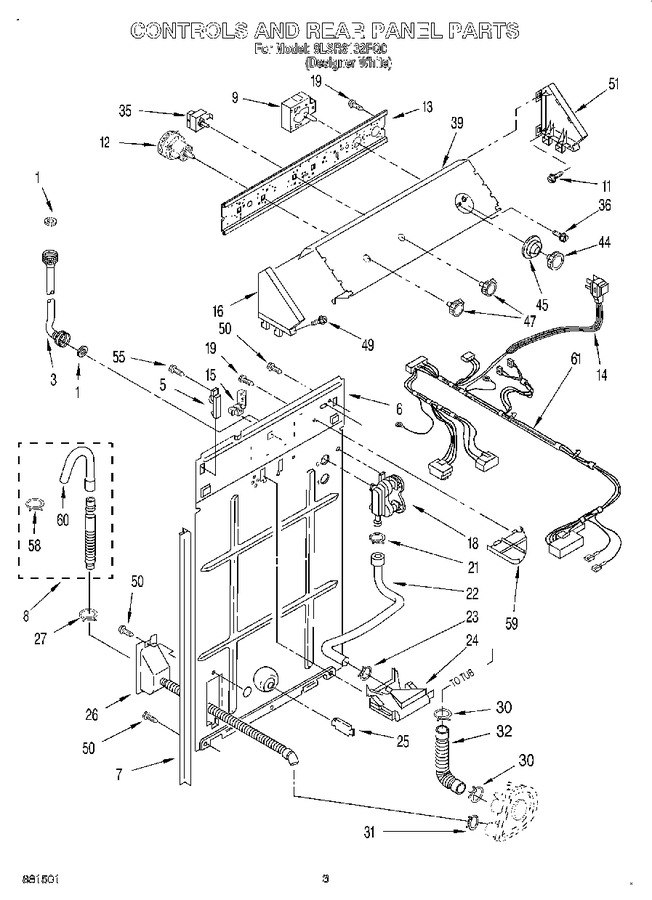

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3357450 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 3357450) |
|
$ 11.01 | |||||
| 3 | WPW10489643 | Hose, Water Inlet (2) (Replaces: 3366916) |
|
$ 77.96 | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3357978 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 3951609) |
|
Immediately | $ 36.89 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 60.90 | ||||
| 9 | 3948850 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
$ 192.92 | |||||
| 11 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 12 | W10339228 | Switch, Water Level (Replaces: 3366849) |
|
Immediately | $ 221.16 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 116.19 | |||||
| 14 | 3949248 | Cord, Power (power Cord Only, Without Harness) |
|
- | |||||
| 15 | 3949468 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 3358528 | Cap, End (l.h.) |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3360392) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (2) (Replaces: 90864) |
|
Immediately | $ 6.95 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.40 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 3357328) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.40 | ||||
| 24 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 18.90 | ||||
| 26 | WPW10358149 | Hose-corrugated Assy. (Replaces: 3361805) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 8.52 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 7.81 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.39 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes No.30) (Replaces: 3950340) |
|
Immediately | $ 26.68 | ||||
| 35 | WPW10168256 | Switch, Water Temperature (Replaces: 661612) |
|
Immediately | $ 128.81 | ||||
| 36 | W10915367 | Screw, Timer Mounting (10-32 X 1) (2) (Replaces: 3400808) |
|
- | |||||
| 39 | 3951547 | Panel, Console |
|
- | |||||
| 44 | W10807860 | Knob, Timer (Replaces: 3948580) |
|
Immediately | $ 49.97 | ||||
| 45 | WP3957841 | Dial, Timer (Replaces: 3950762) |
|
$ 45.35 | |||||
| 47 | WP3957796 | Knob, Control (Replaces: 3950759) |
|
Immediately | $ 54.83 | ||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.11 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 51 | 3358513 | Cap, End (r.h.) |
|
- | |||||
| 55 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 58 | WP3357331 | Clamp, Drain Hose (Replaces: 3366913) |
|
$ 7.56 | |||||
| 59 | 3348424 | Sheild, Suds |
|
- | |||||
| 60 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 93.20 | |||||
| 61 | 3950639 | Wiring Harness (includes Power Cord) (for Detail See Wiring Harness Parts Page) Also See Clips. |
|
- |
