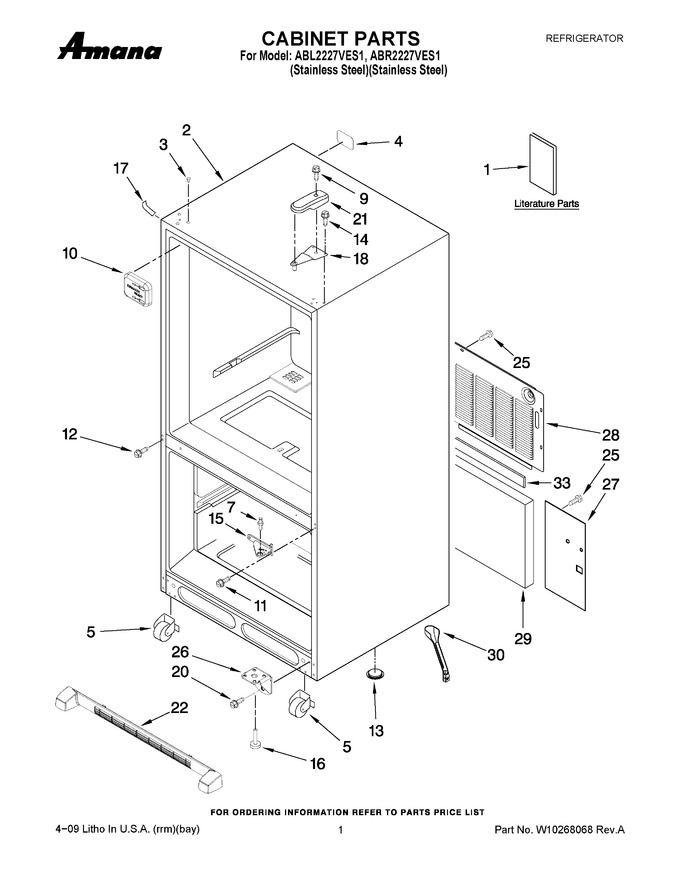

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208785 | Owners Manual |
|
- | |||||
| 1 | W10238840 | Tech Sheet |
|
- | |||||
| 1 | W10212713 | Energy Tag |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 7.76 | ||||
| 4 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.06 | |||||
| 5 | W11820444 | Roller Assembly (left Hand) (Replaces: W10212382) |
|
Immediately | $ 35.57 | ||||
| 5 | W11820445 | Roller Assembly (right Hand) (Replaces: W10212381) |
|
Immediately | $ 35.57 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.03 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 152.73 | |||||
| 16 | WPW10141622 | Foot Brake (2) (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 47.34 | |||||
| 22 | WPW10534162 | Grille Assembly (includes Clips) (black) (Replaces: W10236196) |
|
$ 141.10 | |||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12906303WD | Bracket, Foot |
|
$ 84.36 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 28 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 30 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 33 | B5759655 | Gasket |
|
$ 12.41 |
