SELECT A DIAGRAM

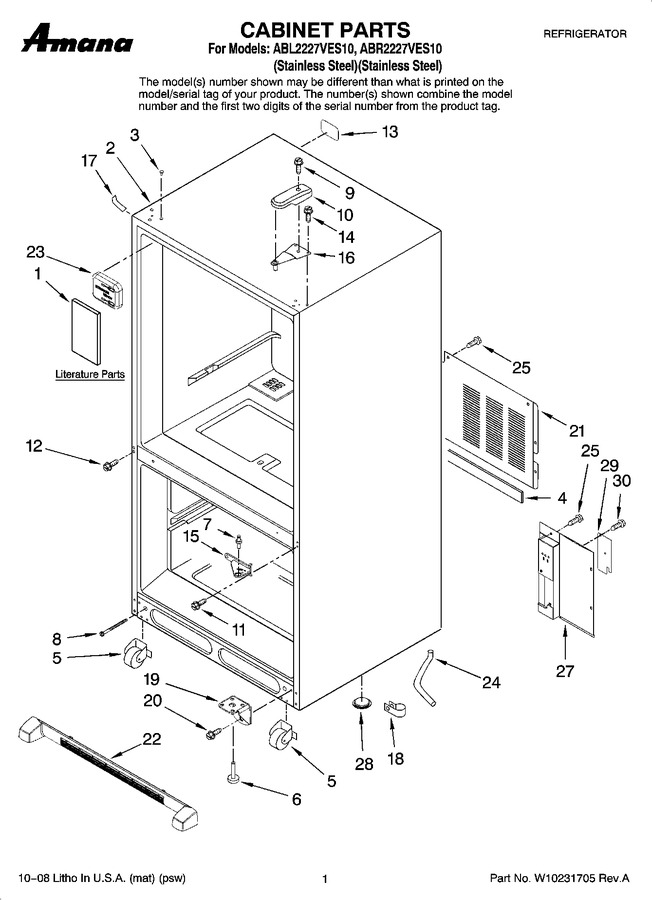

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10208785		Use & Care Guide		Appelez-nous	-
1	W10212713		Energy Guide		Appelez-nous	-
1	W10165418		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 8.15
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assembly				$ 5.84
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 7.08
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	67001012		Cover Hinge (black)				$ 49.71
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 8.43
12	WP98165		Screw   (Replaces: 67006473)				$ 8.57
13	W11685757		Label, Fl Tb Plug   (Replaces: 67005064)				$ 7.41
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
18	W10157973		Clip, Drain				$ 7.80
19	12906303WD		Hinge Bottom				$ 88.58
20	67006564		Screw			Immediately	$ 8.15
21	12575101WD		Cover, Unit				$ 73.26
22	WPW10534162		Grille Assembly (black)   (Replaces: 67006954)				$ 148.16
23	WP67001098		Cover, Fl Tb   (Replaces: 67001098)				$ 8.43
24	W10164397		Tube, Drain				$ 15.53
25	67006425		Screw (9)			Immediately	$ 7.30
27	67001097		Cover, Water Valve		Appelez-nous	-
28	A3076901		Plug-button				$ 5.70
29	12479901		Plate, Cover		Appelez-nous	-
30	WP489128		Screw   (Replaces: 67006662)				$ 11.40

    View Diagram in Separate Window       Print Part List
