Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3355758 Cap, Agitator   (Replaces: 3355758) In-Stock Immediately $ 9.00

2 WP3949550 Washer   (Replaces: 3949550) In-Stock Immediately $ 11.09

3 WP358237 Screw & Washer (5-16-24 X 1)   (Replaces: 358237) In-Stock Immediately $ 8.86

4 3350151 Agitator Appelez-nous -
5 3360611 Tub Ring Special Order $ 88.45

6 WP3359586 Gasket, Tub Ring   (Replaces: 3359586) Special Order $ 94.63

7 WP21366 Nut, Spanner   (Replaces: 21366) In-Stock Immediately $ 11.56

8 8545860 Basket And Balance Ring Appelez-nous -
9 63125 Tub Special Order $ 234.68

10 WP389140 Block, Drive   (Replaces: 389140) In-Stock Immediately $ 27.49

11 W10814296 Gasket, Center Post   (Replaces: 383727) In-Stock Immediately $ 9.98

12 3956205 Balance Ring Special Order $ 75.59

13 WP8519815 Clip, Balance Ring (8)   (Replaces: 8519815) Special Order $ 9.17

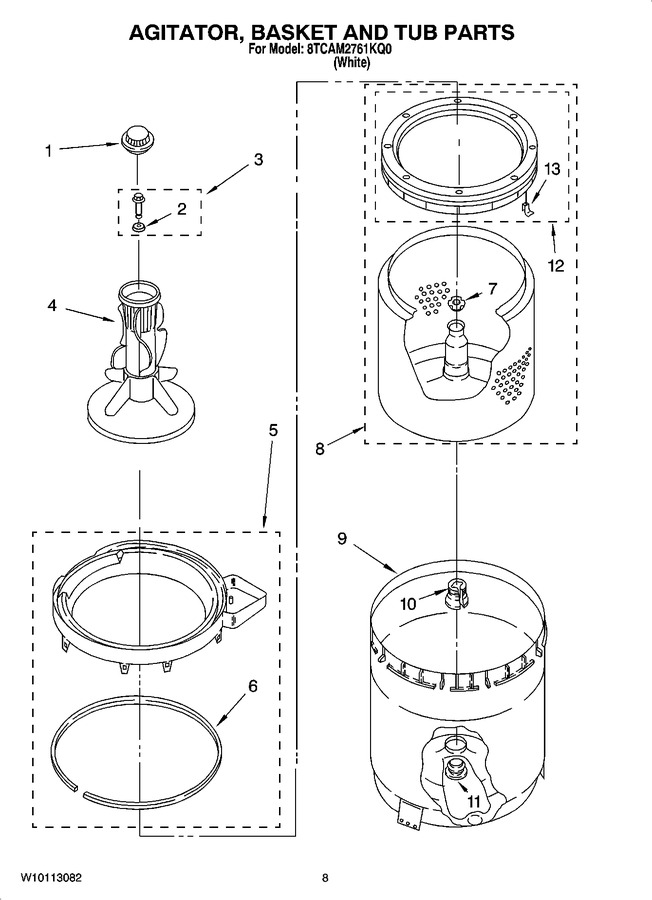

    View Diagram in Separate Window     Print Icon   Print Part List
