SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Machine Base Parts


05 - Brake, Clutch, Gearcase, Motor And Pump Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts


10 - Miscellaneous Parts, Optional Parts (not Included)

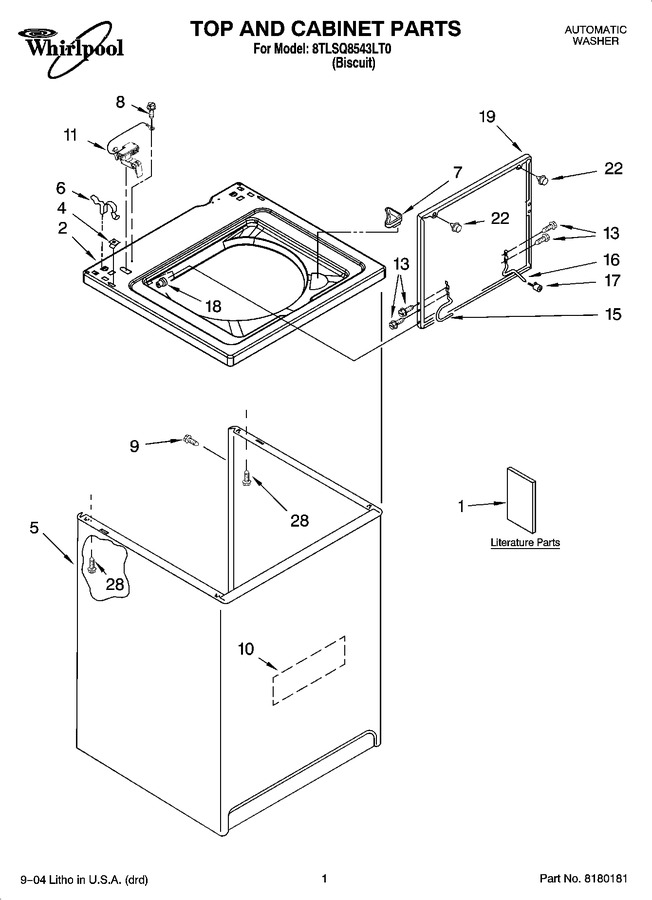

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8539792		Installation Instructions		Appelez-nous	-
1	8541273		Wiring Diagram		Appelez-nous	-
1	8539791		Use & Care Guide (english/chinese)		Appelez-nous	-
1	8558487		Feature Sheet		Appelez-nous	-
2	8318066		Top		Appelez-nous	-
4	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
5	3952698		Cabinet		Appelez-nous	-
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
7	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 12.09
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
9	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
10	3976348		Cabinet - Sound Damper				$ 37.92
11	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 7.55
15	8318088		Hinge, Lid (l.h.)		Appelez-nous	-
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 31.04
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 8.01
19	WP3957511		Lid   (Replaces: 8541742)				$ 221.06
22	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
28	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
