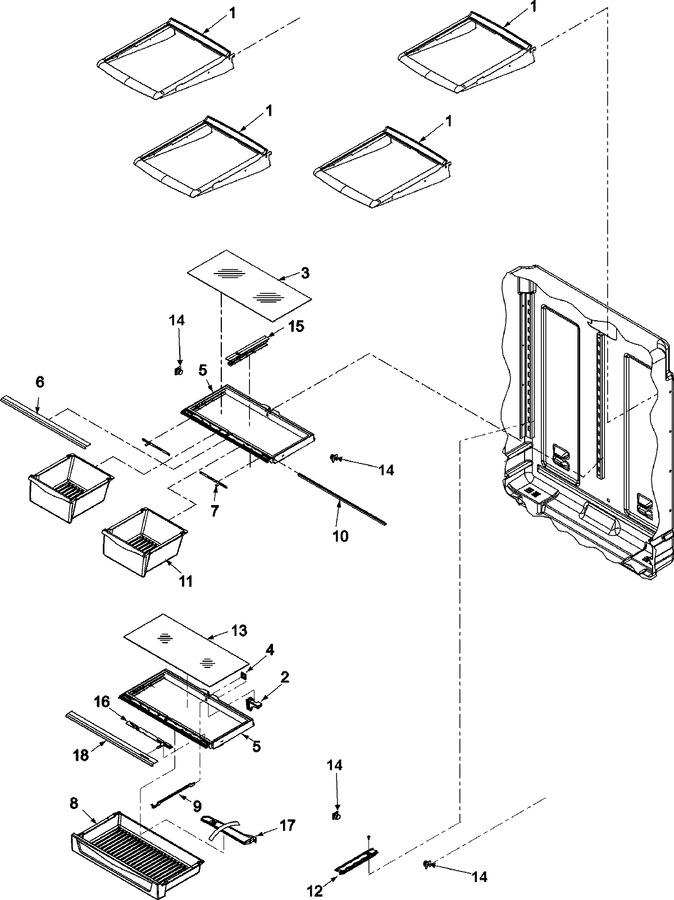

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004637		Shelf, Glide Out	10			$ 113.49
2	WP12531601		Tunnel,pantry   (Replaces: 67002004)	10			$ 11.04
3	WP67006704		Glass, Crisper   (Replaces: 67006704)	10			$ 212.77
4	67002005		Gasket, Pantry	10	Appelez-nous	-
5	WP67003854		Frame, Crisper   (Replaces: 67003854)	10		Immediately	$ 227.55
6	67004636		Extr, Crisper Front	10	Appelez-nous	-
7	WP67005864		Slide, Humidity Control   (Replaces: 67005864)	10		Immediately	$ 8.20
8	67005917		Pan, Pantry	10	Appelez-nous	-
9	67004555		Bar, Pantry Control	10	Appelez-nous	-
10	WP12642303WD		Brace, Crisper E-ct   (Replaces: 67002748)	10			$ 112.26
11	67005915		Pan, Crisper	10			$ 65.50
12	WP67001719		Track, Deli Drawer   (Replaces: 67001719)	10		Immediately	$ 8.99
12	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 7.30
13	WP67006704		Glass, Crisper   (Replaces: 67006704)	10			$ 212.77
14	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
15	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)	10		Immediately	$ 33.37
16	67002002		Slide,pantry	10		Immediately	$ 16.04
17	67004556		Divider, Pantry	10			$ 21.41
18	67004554		Extr., Pantry Front	10	Appelez-nous	-
