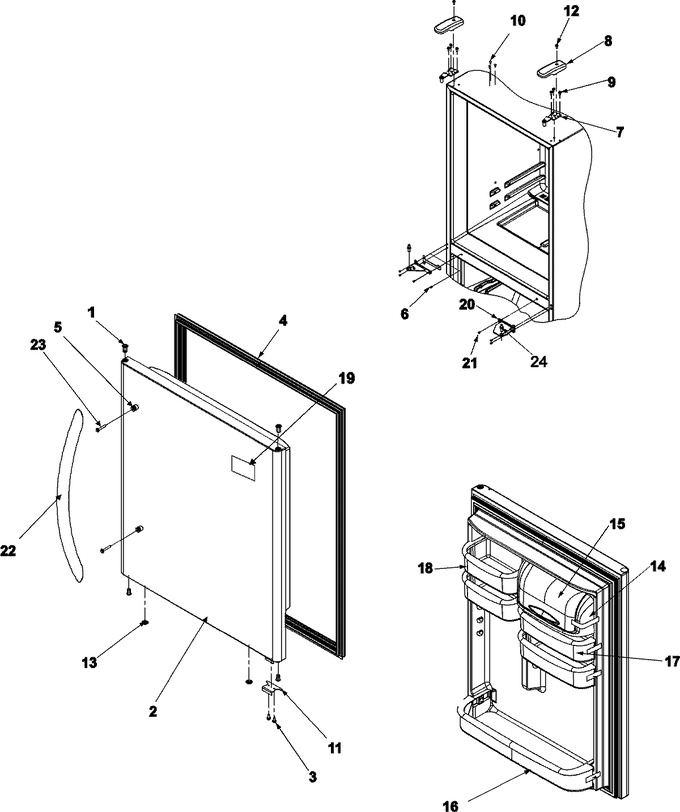

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 21.05 | ||||
| 2 | 67006961 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) | 10 |
|
$ 345.10 | ||||
| 5 | WP67006113 | Mount, Handle (Replaces: 67006113) | 10 |
|
Immediately | $ 11.96 | |||
| 6 | WP489349 | Screw, Tf Hex/washer Hd (Replaces: 67005822) | 10 |
|
Immediately | $ 7.88 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 47.34 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.76 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.05 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.68 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67001139 | Retainer, Door (Replaces: 67001296) | 10 |
|
Immediately | $ 99.80 | |||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 80.90 | ||||
| 18 | 67001141 | Bucket, Small Ref Dr | 10 |
|
Immediately | $ 75.15 | |||
| 19 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 152.73 | ||||
| 21 | WP67003639 | Closure, Door (blk) (Replaces: 67003639) | 10 |
|
$ 86.02 | ||||
| 21 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.02 | ||||
| 22 | 67006719 | Handle, Door (stnls) | 10 |
|
- | ||||
| 23 | WP3387230 | Screw, Mount (Replaces: 67002935) | 10 |
|
Immediately | $ 8.54 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 7.93 |
