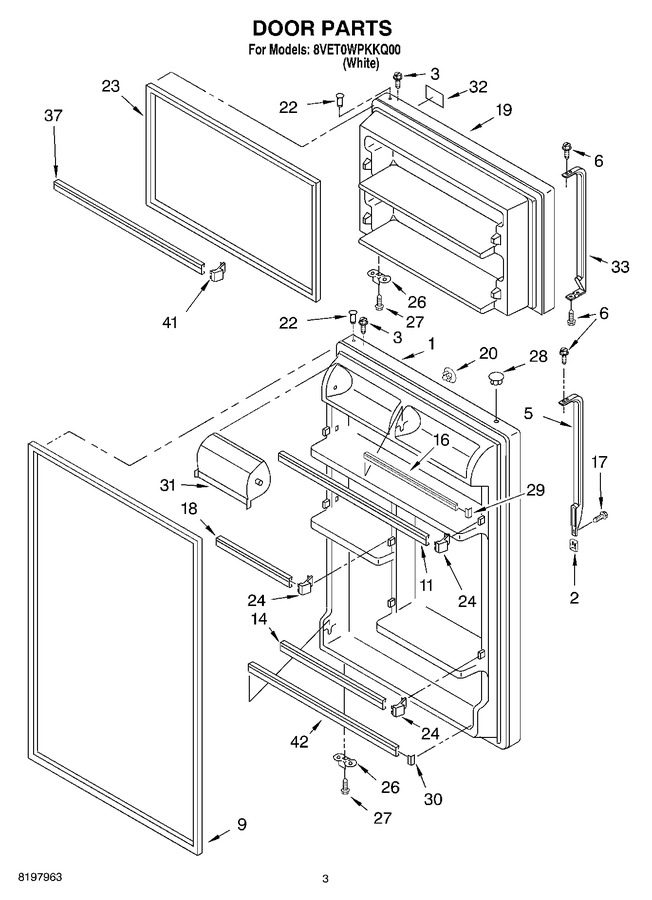

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes No.9 & No.22)		Appelez-nous	-
2	WP2193353W		Cover, Endcap   (Replaces: 2193353W)				$ 8.11
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
5	4388947		Handle   (Replaces: 2213112W)				$ 194.73
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
11	2195941		Trim, Door Shelf				$ 47.96
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
18	2195942		Trim, Door				$ 56.34
19	2182487		Freezer Door (includes No.22 & No.23)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.40
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.07
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
32	2195063		Nameplate		Appelez-nous	-
33	4388947		Handle   (Replaces: 2213111W)				$ 194.73
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76
