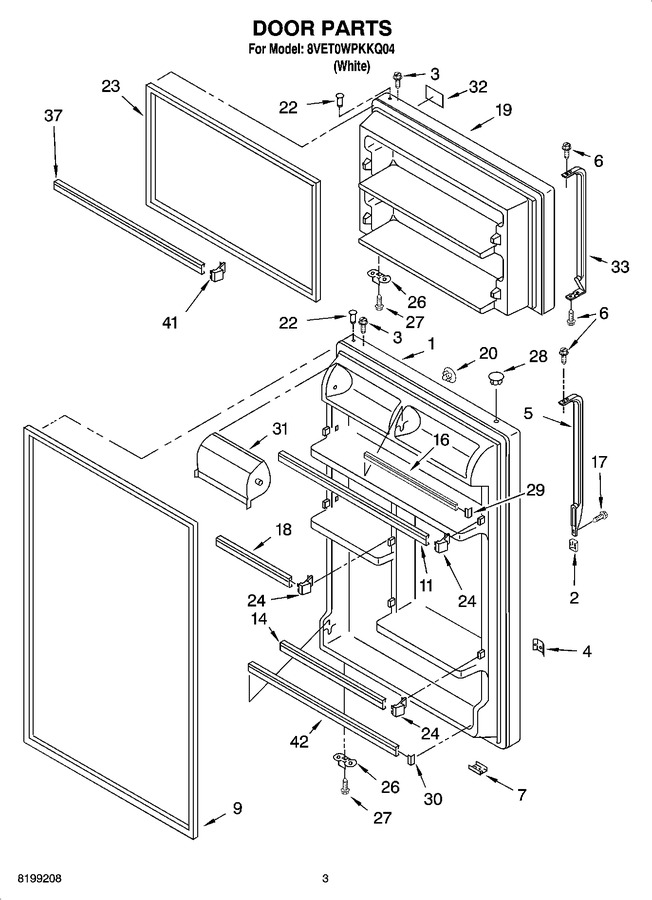

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes Illus. 4,7,9 & 22)		Appelez-nous	-
2	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 8.52
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
5	4388947		Handle, Refrigerator   (Replaces: 2213112W)				$ 204.47
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
7	2183198		Tap Plate		Appelez-nous	-
9	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 164.66
11	2195941		Trim, Door Shelf				$ 47.96
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 91.78
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 124.32
17	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
18	2195942		Trim, Door				$ 56.34
19	2182487		Freezer Door (includes Illus. 7, 22 & 23)		Appelez-nous	-
20	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 7.77
22	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159327		Door Gasket, Magnetic   (Replaces: 2214966)			Immediately	$ 164.58
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.72
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 8.19
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
32	2195063		Nameplate		Appelez-nous	-
33	4388947		Handle, Freezer   (Replaces: 2213111W)				$ 204.47
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 136.25
