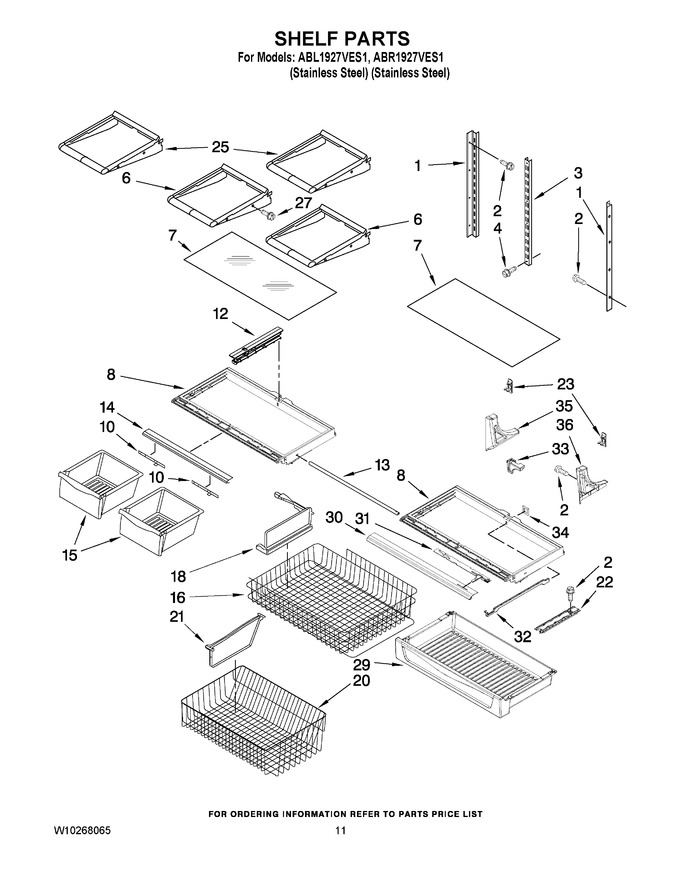

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12710606		Ladder, Side		Appelez-nous	-
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
3	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
6	W11402522		Shelf, Stationary   (Replaces: 12463608)				$ 203.51
7	WP67006877		Glass, Crisper   (Replaces: 12204823)			Immediately	$ 209.75
8	12724014		Frame, Crisper		Appelez-nous	-
10	WP67005864		Slide, Humidity   (Replaces: 12530805)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
13	WP12227302WD		Brace, Crisperframe   (Replaces: 12227302WD)				$ 111.60
14	W10231337		Trim, Crisper				$ 47.70
15	W10833530		Pan, Crisper (2)   (Replaces: 12724121)				$ 158.61
16	W10201224		Basket, Freezer (upper)		Appelez-nous	-
18	W10241046		Divider, Upper Basket			Immediately	$ 29.19
20	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 241.97
21	W10205416		Divider, Lower Basket		Appelez-nous	-
22	WP67001719		Track-pantry   (Replaces: 12531901)			Immediately	$ 8.99
23	WP67001716		Hook, Ladder   (Replaces: 12531802)			Immediately	$ 11.14
25	W11402522		Shelf, Glide (2)   (Replaces: 12463408V)				$ 203.51
27	W10854958		Screw   (Replaces: 12990302)				$ 7.90
29	12645019		Pan, Pantry		Appelez-nous	-
30	12530605		Trim, Pantry Front		Appelez-nous	-
31	12531502		Slide,pantry		Appelez-nous	-
32	12531401		Bar, Pantry		Appelez-nous	-
33	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 11.04
34	12531701		Gasket, Pantry		Appelez-nous	-
35	WP67001721		Support-left   (Replaces: 12531001)			Immediately	$ 8.70
36	WP67001722		Support-right   (Replaces: 12531002)			Immediately	$ 8.93
