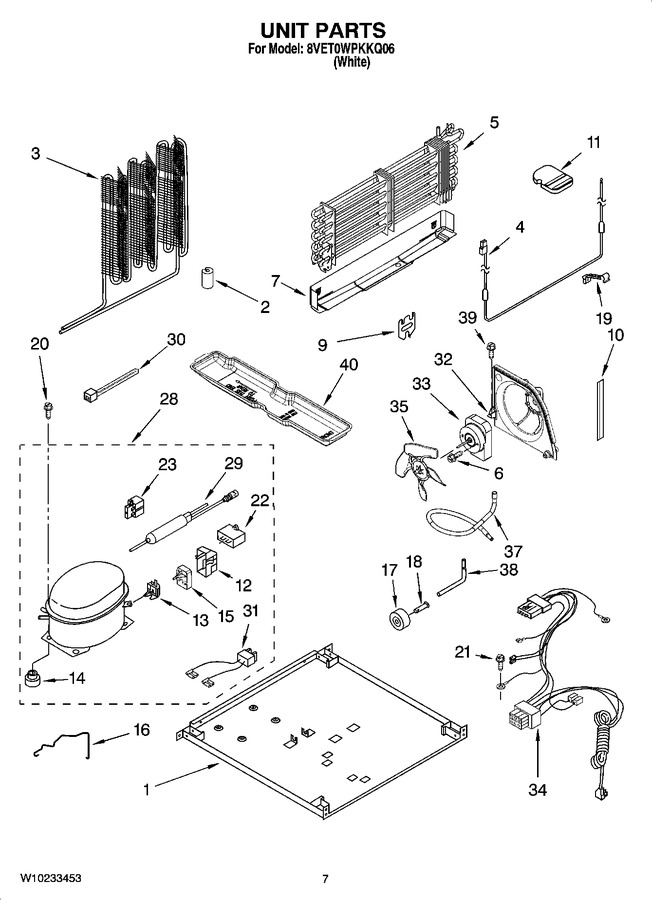

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320188		Plate, Unit Mounting		Appelez-nous	-
2	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.70
3	W10159808		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2315531)				$ 104.62
5	2254250		Evaporator Assy.				$ 234.07
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254294		Drain Pan		Appelez-nous	-
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201184		Support Block				$ 6.43
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2214067		Overload (service Only)   (Replaces: 4390624)				$ 131.66
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	WP2225929		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2225929)			Immediately	$ 128.01
16	2212996		Strap   (Replaces: 2255113)				$ 12.11
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	WP489128		Screw   (Replaces: 488500)				$ 10.88
22	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
22	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
23	2183454		Relay (service Only)		Appelez-nous	-
28	W10285060		Compressor (includes Illus. 12,13,14, 22,23,29 & 33) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10175729)				$ 703.38
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
30	WPW10339879		Tie, Wire   (Replaces: 2155774)				$ 7.90
31	WP2172890		Wire Assembly (service Only)   (Replaces: 4387765)				$ 8.10
32	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 83.80
33	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
34	2187807		Wire Assembly Unit		Appelez-nous	-
35	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
37	2225237		Tube, Suction				$ 40.12
38	2154109		Tube, Process				$ 72.63
39	3400518		Screw				$ 12.98
40	WP2254574		Evaporating Tray   (Replaces: 2254574)				$ 174.85
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
