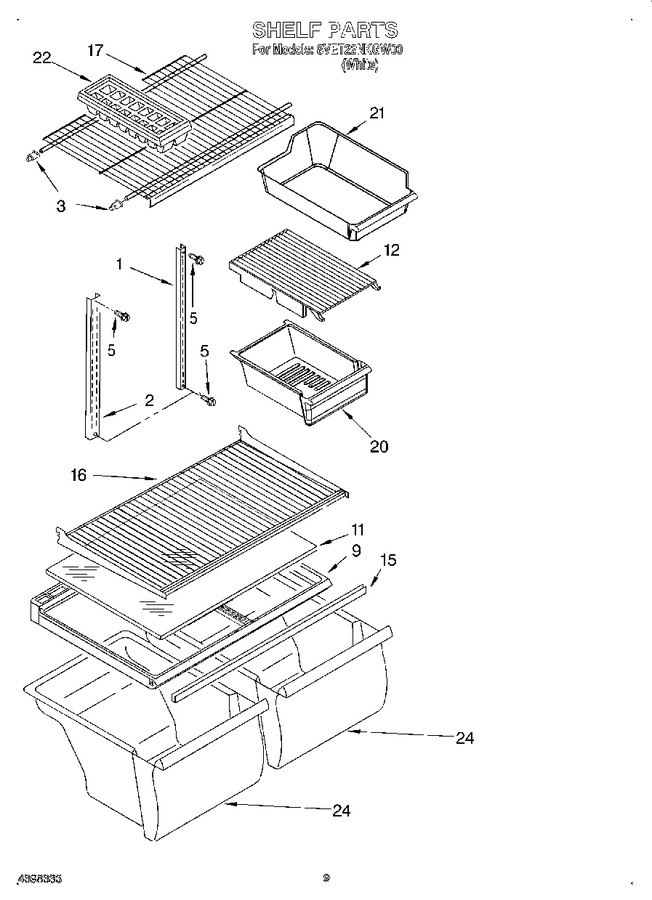

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2202822 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 2202821 | Shelf, Ladder Center |
|
- | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2195344) |
|
$ 279.10 | |||||
| 11 | WP2176225 | Insert, Crisper Cover (Replaces: 2176225) |
|
$ 264.41 | |||||
| 12 | 2163848 | Cover, Meat Pan |
|
$ 71.41 | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 102.08 | |||||
| 16 | 2195398 | Shelf, Full Cantilever (2) |
|
- | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 20 | 2200920K | Pan, Meat |
|
$ 81.92 | |||||
| 21 | 2254352A | Ice Bucket (Replaces: 2176219) |
|
$ 58.64 | |||||
| 22 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 24 | W10854037 | Pan, Crisper (Replaces: 2166256) |
|
Immediately | $ 179.19 | ||||
| 100 | 2182576 | Featurepak (includes 12, 20) Also See Dr. Pg. |
|
- |
