01 - Cabinet, Literature
02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:

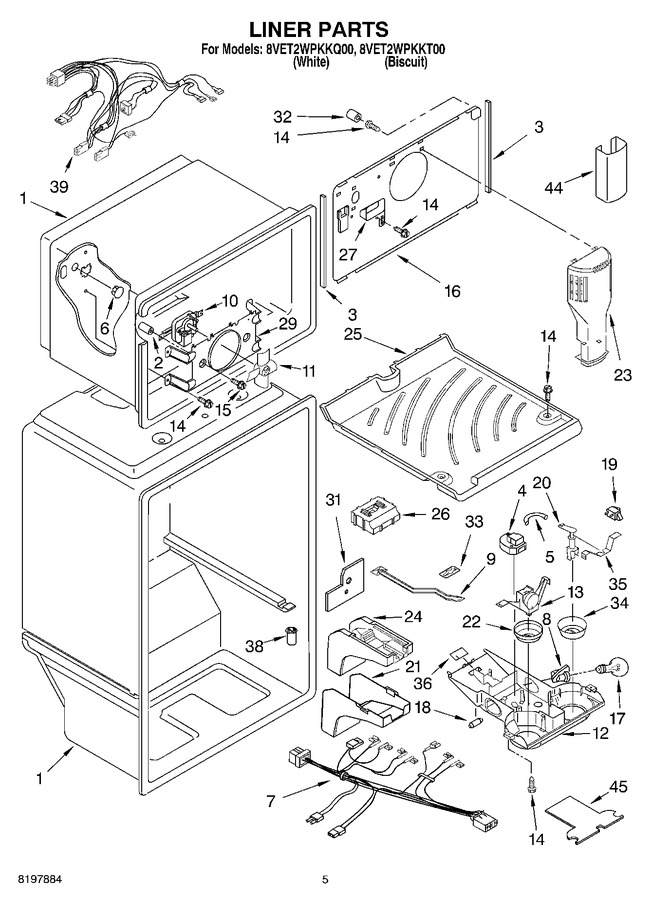

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2221653) |
|
$ 26.78 | |||||
| 4 | 2212769 | Timer, Defrost |
|
- | |||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 7.65 | |||||
| 7 | 2187306 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | 2212753 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | 2200820 | Control Box |
|
- | |||||
| 13 | 2200859 | Thermostat Assy. |
|
$ 114.36 | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 15 | 489412 | Screw |
|
- | |||||
| 16 | 2201175 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 37.23 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 30.39 | |||||
| 23 | 2182340 | Air Tower |
|
$ 43.02 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 124.79 | ||||
| 25 | 2184617 | Freezer Floor |
|
- | |||||
| 26 | 2204690 | Air Diffuser, Top |
|
$ 135.07 | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 29 | 2200511 | Bracket, Fan Motor |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 8.26 | |||||
| 33 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 9.53 | |||||
| 38 | WP2210509 | Release Valve (Replaces: 2210509) |
|
$ 94.43 | |||||
| 39 | 2187302 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 44 | 2179712 | Sleeve |
|
- | |||||
| 45 | 2201082 | Shield |
|
- |
