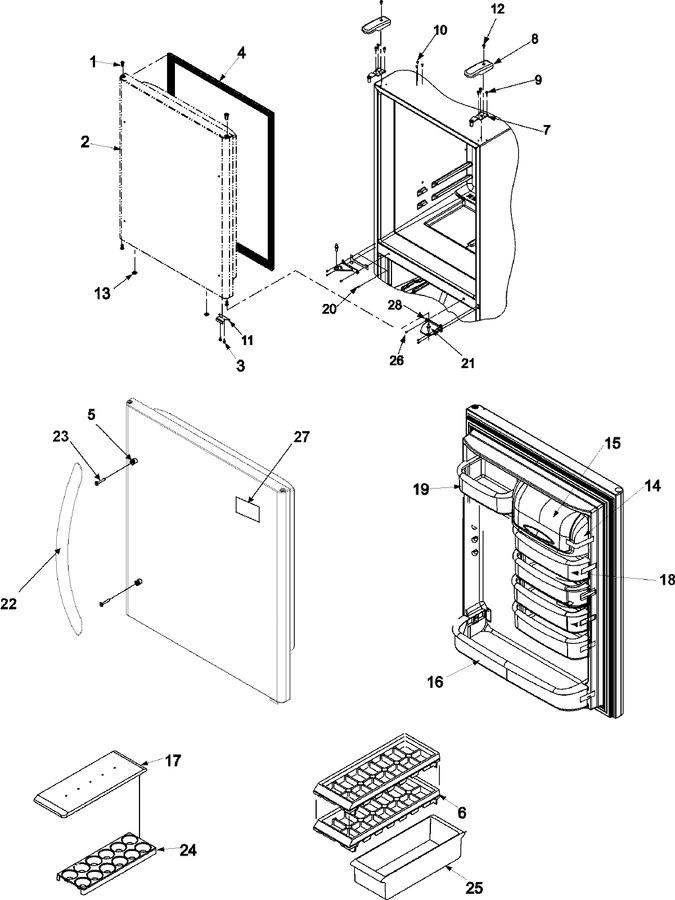

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 21.05 | ||||
| 2 | 67006742 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 4 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: 67003553) | 10 |
|
$ 286.97 | ||||
| 5 | WP67006113 | Mount, Handle (Replaces: 67006113) | 10 |
|
Immediately | $ 11.96 | |||
| 6 | WP841180A | Ice Tray (Replaces: D7725402) | 10 |
|
Immediately | $ 45.56 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 47.34 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.88 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.76 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.05 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 10.68 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67001019 | Retainer, Door (Replaces: 67001280) | 10 |
|
Immediately | $ 107.52 | |||
| 17 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 18 | 67003769 | Lrg Ref Bucket/grip Assy | 10 |
|
- | ||||
| 19 | 67004871 | Bucket, Short Assy | 10 |
|
- | ||||
| 20 | WP98165 | Screw Sm/hex (Replaces: 67006473) | 10 |
|
$ 8.00 | ||||
| 21 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 7.93 | ||||
| 23 | WP3387230 | Screw, Mount (Replaces: 67002935) | 10 |
|
Immediately | $ 8.54 | |||
| 24 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 25 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 26 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.02 | ||||
| 27 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 152.73 | ||||
| NI | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 80.90 |
