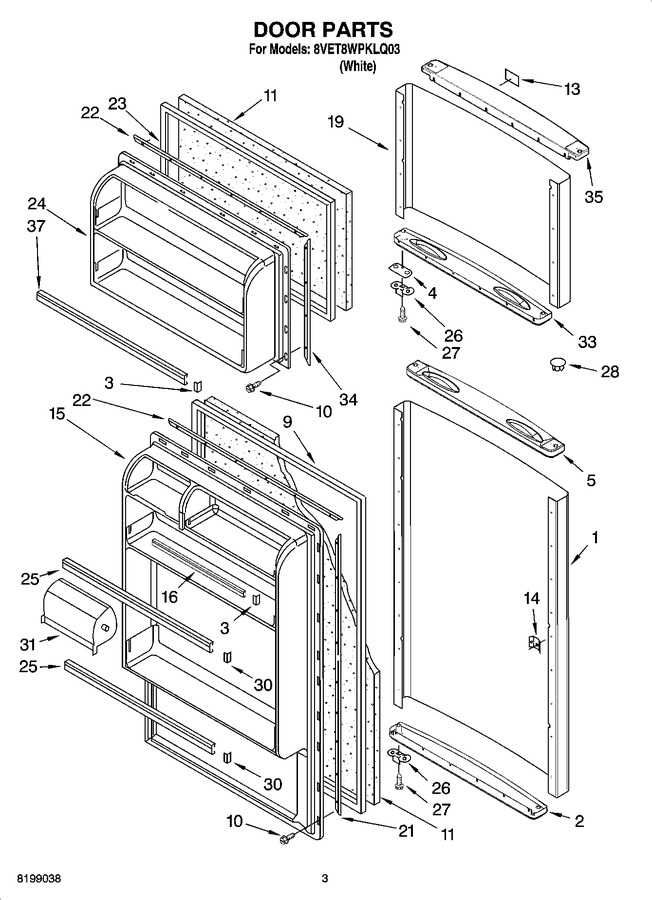

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2258731W		Refrigerator Door Panel (includes Items 2 & 5) (also Order Item 11)		Appelez-nous	-
2	2222012		Endcap, Bottom (rc Door)		Appelez-nous	-
3	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
4	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.55
5	2265645W		Endcap, Handle (rc Door)   (Replaces: 2222011)				$ 219.98
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2262080)			Immediately	$ 192.71
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
15	2197158		Interior Door Panel (refrigerator)		Appelez-nous	-
16	2192654		Trim, Door Shelf (upper)		Appelez-nous	-
19	2222016W		Freezer Door Panel (includes Items 33 & 35) (also Order Item 11)		Appelez-nous	-
21	2197082		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic   (Replaces: 2262079)				$ 114.77
24	2197159		Interior Door Panel (freezer)		Appelez-nous	-
25	WP2266738		Trim, Door Shelf   (Replaces: 2192656)				$ 111.69
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.41
28	WP2212648		Hole Plug   (Replaces: 2212648)			Immediately	$ 8.19
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	2174801		Compartment Door		Appelez-nous	-
33	2265645W		Endcap, Handle (fc Door)   (Replaces: 2258858W)				$ 219.98
34	1122553		Retainer, Gasket		Appelez-nous	-
35	2252860		Endcap, Top (fc Door)		Appelez-nous	-
37	WP2266727		Trim-door (2)   (Replaces: 2192653)			Immediately	$ 92.50
