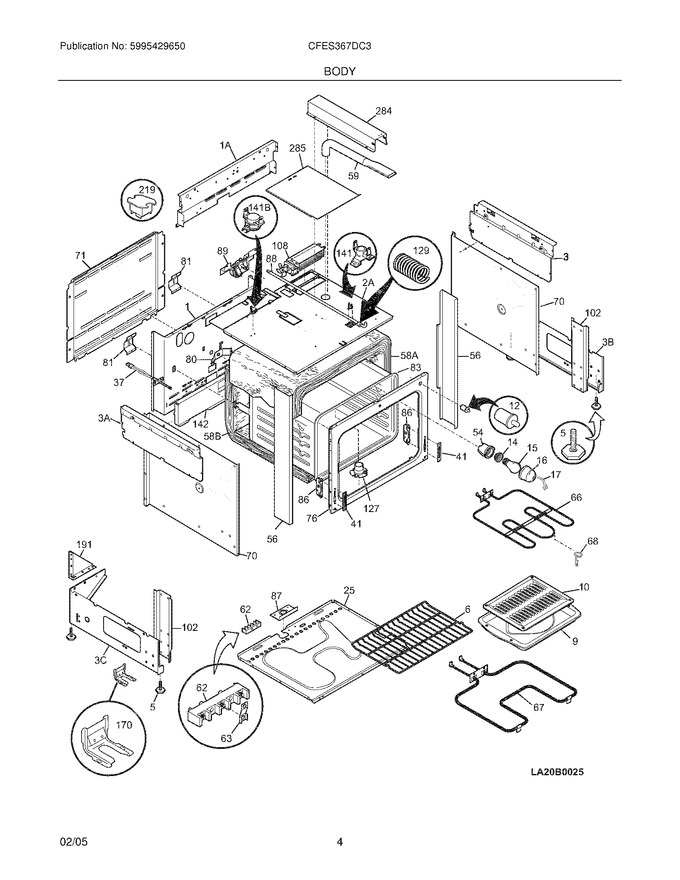

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066415		Panel,main Back		Appelez-nous	-
3	318225200		Panel,bodyside ,upper Rh		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 26.96
6	318025314		Rack,oven   (Replaces: 318025308)			Immediately	$ 165.22
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 62.33
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 19.07
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179113		Shield,bottom				$ 76.65
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
56	318225902		Trim,oven ,black		Appelez-nous	-
59	318072534		Tube,vent ,oven				$ 105.79
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	318264200		Plate,grounding Strap				$ 26.12
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 214.20
68	5304403015		Support,element Hanger				$ 38.93
70	318194401		Shield,insulation		Appelez-nous	-
71	318295800		Panel,wiring Cover ,rear		Appelez-nous	-
76	318225302		Front,oven		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089613		Liner,oven				$ 205.64
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318111801		Plate,mounting		Appelez-nous	-
88	318250210		Rod,latch ,w/bushing		Appelez-nous	-
102	5303311142		Support-oven Front		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 83.48
129	5303311164		Spring				$ 21.06
142	318123901		Deflector		Appelez-nous	-
170	5304405244		Anti-tip & Accessories				$ 44.73
191	5303304030		Bracket,angle ,corner		Appelez-nous	-
284	318226600		Box,vent Tube		Appelez-nous	-
285	318236200		Shield,hidden Wires		Appelez-nous	-
1A	318225101		Panel,main Back ,upper		Appelez-nous	-
2A	318227601		Shield,oven Top		Appelez-nous	-
3A	318225201		Panel,bodyside ,upper Lh		Appelez-nous	-
3B	318160012		Panel,lower Side ,rh		Appelez-nous	-
3C	318160013		Panel,lower Side ,lh		Appelez-nous	-
58A	318285017		Insulation,oven Wrapper		Appelez-nous	-
58B	318285018		Insulation,oven Back				$ 8.30
F108	318073028		Motor,blower   (Replaces: 318073016)				$ 301.88
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 49.14
F141	318005201		Switch,thermal Cutout				$ 90.49
F141	318003615		Thermostat,safety				$ 65.68
F219	318112701		Relay				$ 25.62
F37	316217002		Probe,oven Temp			Immediately	$ 68.03
F67	318255006		Element,bake ,3000w   (Replaces: 318255000)			Immediately	$ 205.71
F89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 141.94
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318120711		Switch				$ 87.68
NI	5304436864		Washer,flat				$ 3.15
NI	318167300		Clip,rod				$ 3.15
NI	318113107		Cord,electric		Appelez-nous	-
NI	318531702		Spacer,(4)   (Replaces: 318014110)				$ 11.03
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 16.54
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 12.60
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 15.75
