Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12710602 Ladder, Side Appelez-nous -
2 67006425 Screw   (Replaces: 12990513) In-Stock Immediately $ 6.95

3 67001073 Ladder, Center   (Replaces: 12435807) Special Order $ 54.18

4 W10709795 Screw (2)   (Replaces: 12990515) Special Order $ 13.13

6 12463609 Shelf, Stationary Appelez-nous -
7 WP67006878 Glass, Crisper   (Replaces: 12204822) In-Stock Immediately $ 185.19

8 12724003KVF Frame, Crisper Appelez-nous -
10 WP67005864 Slide, Humidity   (Replaces: 12530805) In-Stock Immediately $ 7.81

12 WPW10671238 Rail, Center Crisper   (Replaces: 12530701) In-Stock Immediately $ 112.82

13 WP12227303WD Brace, Crisper Frame   (Replaces: 12227303WD) Special Order $ 105.95

14 W10231341 Trim, Crisper Special Order $ 50.13

15 W10833530 Pan, Crisper (2)   (Replaces: 12724121) Special Order $ 151.06

16 W10201223 Basket, Freezer (upper) Appelez-nous -
18 W10241046 Divider, Upper Basket In-Stock Immediately $ 27.80

20 WPW10503183 Basket, Freezer (lower)   (Replaces: W10150038) In-Stock Immediately $ 237.48

21 W10311695 Divider, Lower Basket   (Replaces: W10171570) Special Order $ 28.76

22 WP67001719 Track-pantry   (Replaces: 12531901) In-Stock Immediately $ 8.56

23 WP67001716 Hook, Ladder   (Replaces: 12531802) In-Stock Immediately $ 10.61

25 12657848 Shelf, Glide (2) Appelez-nous -
27 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.43

29 WPW10328329 Pan, Pantry   (Replaces: 12645020) Special Order $ 154.44

30 W10656985 Trim, Pantry Front   (Replaces: W10231333) Special Order $ 131.12

31 12531502 Slide,pantry Appelez-nous -
32 12531401 Bar, Pantry Appelez-nous -
33 WP12531601 Tunnel, Pantry   (Replaces: 12531601) Special Order $ 10.51

34 12531701 Gasket, Pantry Appelez-nous -
35 WP67001721 Support-left   (Replaces: 12531001) In-Stock Immediately $ 8.70

36 WP67001722 Support-right   (Replaces: 12531002) In-Stock Immediately $ 8.93


    View Diagram in Separate Window     Print Icon   Print Part List

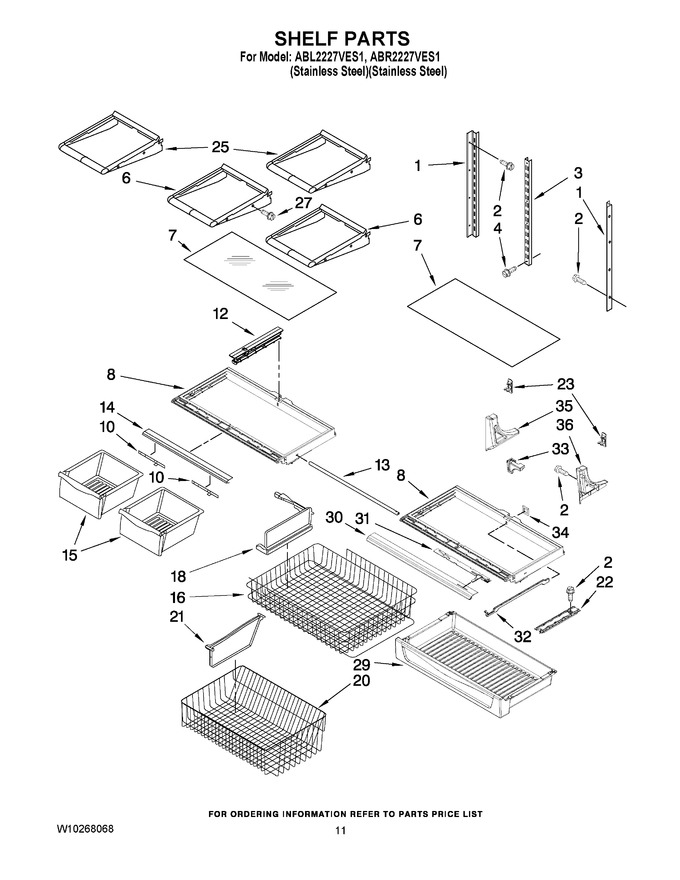

Diagram for ABR2227VES1
