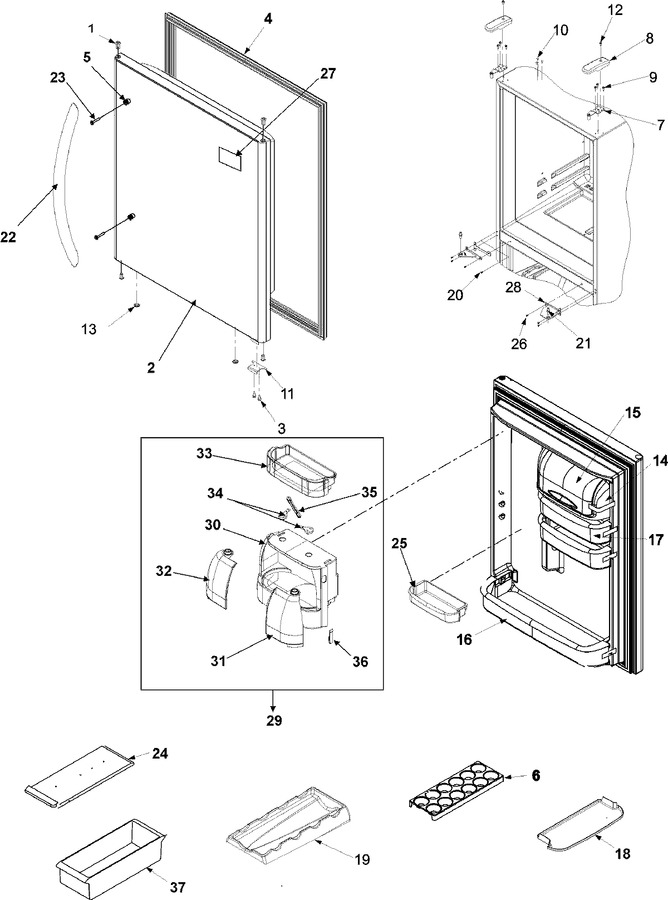

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) | 10 |
|
$ 22.10 | ||||
| 2 | 67006790 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 8.57 | ||||
| 4 | WPW10436248 | Gasket, Ref Door (blk) (Replaces: 67003553) | 10 |
|
$ 286.97 | ||||
| 5 | WP67006113 | Mount, Handle (Replaces: 67006113) | 10 |
|
Immediately | $ 12.56 | |||
| 6 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 47.13 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 49.71 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 8.43 | |||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 8.15 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.75 | |||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.55 | |||
| 13 | 67004838 | Plug, Vent (blk) | 10 |
|
$ 11.21 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 113.99 | ||||
| 16 | 67004595 | Retainer, Door | 10 |
|
- | ||||
| 17 | WPW10371193 | Bucket Assy, Ref. (med W/grip) (Replaces: 67003770) | 10 |
|
Immediately | $ 74.80 | |||
| 18 | 67003212 | Gripper, Bucket | 10 |
|
- | ||||
| 19 | 67001656 | Trivet, Bottle | 10 |
|
$ 72.49 | ||||
| 20 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 8.43 | |||
| 21 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 8.78 | ||||
| 22 | 67006719 | Handle, Door (stnls) | 10 |
|
- | ||||
| 23 | WP3387230 | Screw, Mount (Replaces: 67002935) | 10 |
|
Immediately | $ 8.54 | |||
| 24 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 25 | 67004469 | Bucket, Ref Dr Short | 10 |
|
- | ||||
| 25 | 67003212 | Gripper, Bucket | 10 |
|
- | ||||
| 26 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.72 | ||||
| 27 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 62.74 | |||
| 28 | WP12607104ED | Hinge, Center (blk) (Replaces: 67007043) | 10 |
|
$ 167.35 | ||||
| 29 | 67004596 | Chiller Assy | 10 |
|
- | ||||
| 30 | 67004597 | Frame, Chiller | 10 |
|
- | ||||
| 31 | 67004598 | Door, Chiller (rt) | 10 |
|
$ 36.77 | ||||
| 32 | 67004599 | Door, Chiller (lt) | 10 |
|
- | ||||
| 33 | 67004600 | Bucket, Chiller | 10 |
|
- | ||||
| 34 | 67002293 | Linkage, Chiller | 10 |
|
$ 11.76 | ||||
| 35 | 67004601 | Linkage, Chiller Ctr | 10 |
|
- | ||||
| 36 | 67004602 | Hook, Chiller Frame | 10 |
|
- | ||||
| 37 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 |
