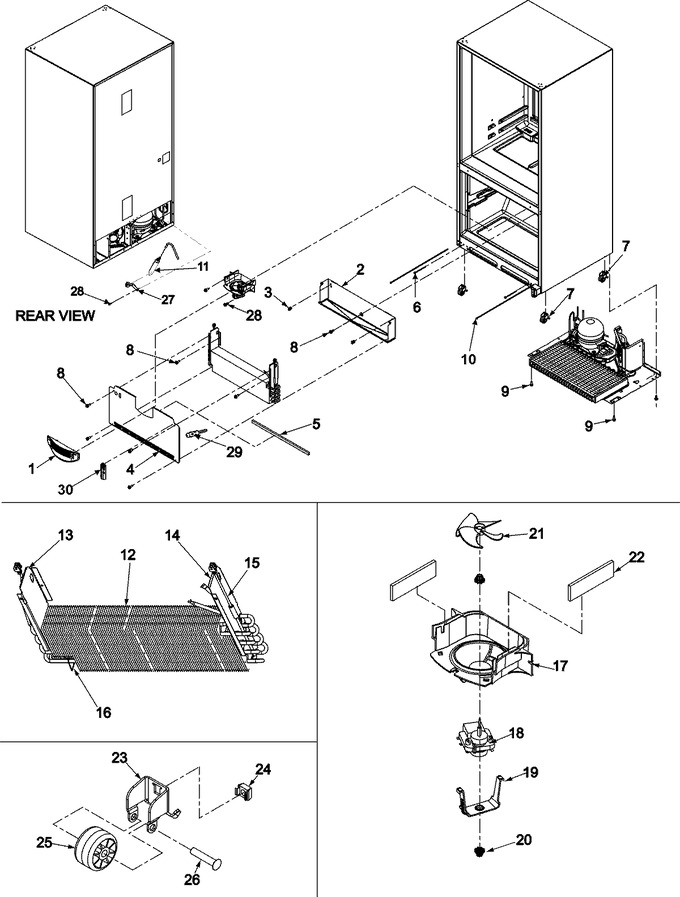

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10175909 | Grille, Fz Air (Replaces: 67006609) | 10 |
|
Immediately | $ 85.72 | |||
| 2 | W11547653 | Tray, Drip E-ct (Replaces: 67002490) | 10 |
|
$ 54.30 | ||||
| 3 | 10623002 | Clip, Evaporator | 10 |
|
$ 11.53 | ||||
| 4 | W11727809 | Cover, Evaporator (Replaces: 67005873) | 10 |
|
$ 89.54 | ||||
| 5 | W11159728 | Gasket (Replaces: 67002492) | 10 |
|
Immediately | $ 28.86 | |||
| 6 | 71003131 | Bolt, Roller Adj (Replaces: 67006611) | 10 |
|
Immediately | $ 6.74 | |||
| 7 | 67006118 | Roller Bracket Assembly | 10 |
|
- | ||||
| 8 | 67006425 | Screw, Sm | 10 |
|
Immediately | $ 6.95 | |||
| 9 | 12992101 | Screw (Replaces: 67006573) | 10 |
|
- | ||||
| 10 | 67002781 | Screw, Adjusting |
|
- | |||||
| 11 | WPB2150504 | Drier (Replaces: B2150504) | 10 |
|
$ 130.46 | ||||
| 12 | 12002041 | Kit, Evap Replacement | 10 |
|
$ 348.63 | ||||
| 13 | 67001083 | Dam, Left Return | 10 |
|
- | ||||
| 14 | 67001084 | Dam, Right Return | 10 |
|
- | ||||
| 15 | WP67002493 | Heater, Defrost (Replaces: 67002493) | 10 |
|
Immediately | $ 146.15 | |||
| 16 | W11673433 | Clip, Evap Heater (Replaces: 10428101) | 10 |
|
$ 141.12 | ||||
| 17 | 67002777 | Shroud, Evap Fan | 10 |
|
$ 60.88 | ||||
| 18 | WPW10128551 | Motor, Evap Fan (Replaces: 67003636) | 10 |
|
Immediately | $ 78.75 | |||
| 19 | WP67005633 | Clip, Evap Motor (Replaces: 67005633) | 10 |
|
$ 7.65 | ||||
| 20 | 12732802 | Grommet, Fan Motor (tan) | 10 |
|
- | ||||
| 21 | WP2169142 | Fan, Evaporator (Replaces: 12217201) | 10 |
|
Immediately | $ 43.41 | |||
| 22 | W10856123 | Gasket, Foam (Replaces: 67001291) | 10 |
|
Immediately | $ 7.68 | |||
| 23 | 12456801V | Bracket, Roller (Replaces: 12456801) | 10 |
|
$ 50.57 | ||||
| 24 | M0286708 | Nut, Speed | 10 |
|
$ 45.57 | ||||
| 25 | WP10450603 | Roller (Replaces: 67005127) | 10 |
|
$ 7.88 | ||||
| 26 | M1205302 | Rivet | 10 |
|
$ 5.85 | ||||
| 27 | 10547002 | Clip, Drier | 10 |
|
- | ||||
| 28 | WP33001882 | Screw (Replaces: 67006737) | 10 |
|
$ 79.72 | ||||
| 29 | 12002355 | Thermistor Kit (Replaces: 12002356) | 10 |
|
Immediately | $ 47.36 | |||
| 30 | 67003931 | Harness, Evap Heater | 10 |
|
$ 77.40 | ||||
| 30 | WP67003924 | Cover, Fz Thermistor (Replaces: 67003924) | 10 |
|
$ 7.82 | ||||
| NI | WP67003426 | Thermostat, Defrost (Replaces: 67003426) | 10 |
|
Immediately | $ 68.65 |
