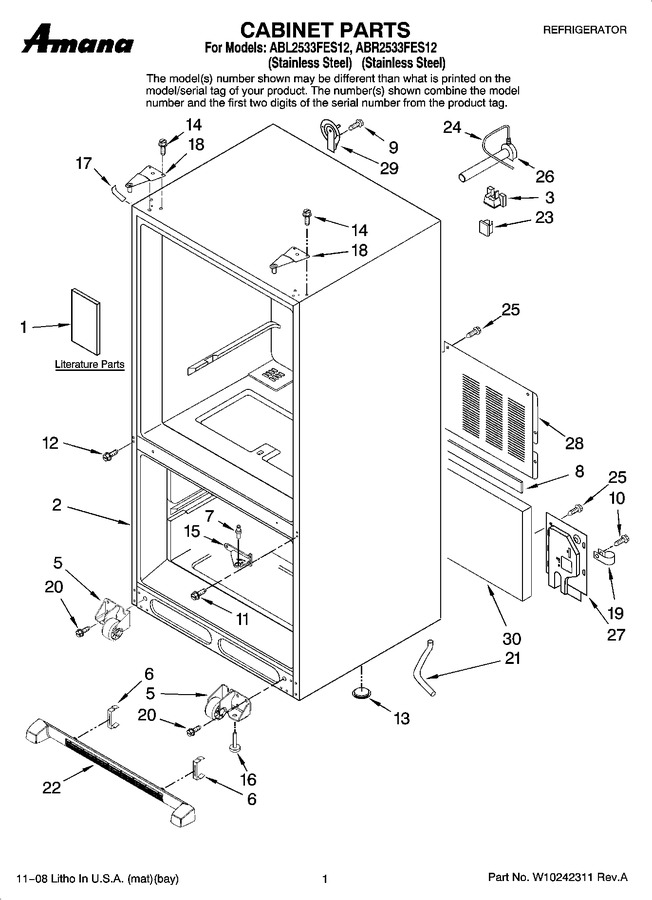

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10123466		Energy Tag		Appelez-nous	-
1	67006716		Tech Sheet		Appelez-nous	-
1	W10137643		Owners Manual		Appelez-nous	-
3	67004092		Block, Filter		Appelez-nous	-
5	67006118		Roller Foot Assembly		Appelez-nous	-
6	12627302		Clip, Grille				$ 5.84
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
8	B5759649		Gasket		Appelez-nous	-
9	WP98165		Screw   (Replaces: 67006287)				$ 8.57
10	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
11	W11573362		Screw (3)   (Replaces: 67006380)				$ 14.72
12	WP98165		Screw   (Replaces: 67006473)				$ 8.57
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 167.35
16	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
18	WP12566606ED		Hinge, Top (left)   (Replaces: 12566604ED)			Immediately	$ 47.13
19	67001067		Clip, Drain Tube				$ 9.66
20	67006564		Screw			Immediately	$ 8.15
21	67001066		Tube, Drain				$ 55.82
22	WPW10534153		Grille Assembly (includes Clips) (black)   (Replaces: 67006375)				$ 154.57
23	67002816		Clip, Waterline				$ 19.15
24	WPB5705307		Tube, Plastic   (Replaces: 67003729)				$ 13.05
25	67006425		Screw (10)			Immediately	$ 7.30
26	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
27	67004098		Cover, Water Valve		Appelez-nous	-
28	67006101		Cover, Unit				$ 76.68
29	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
30	67003796		Insulation, Sound				$ 19.27
