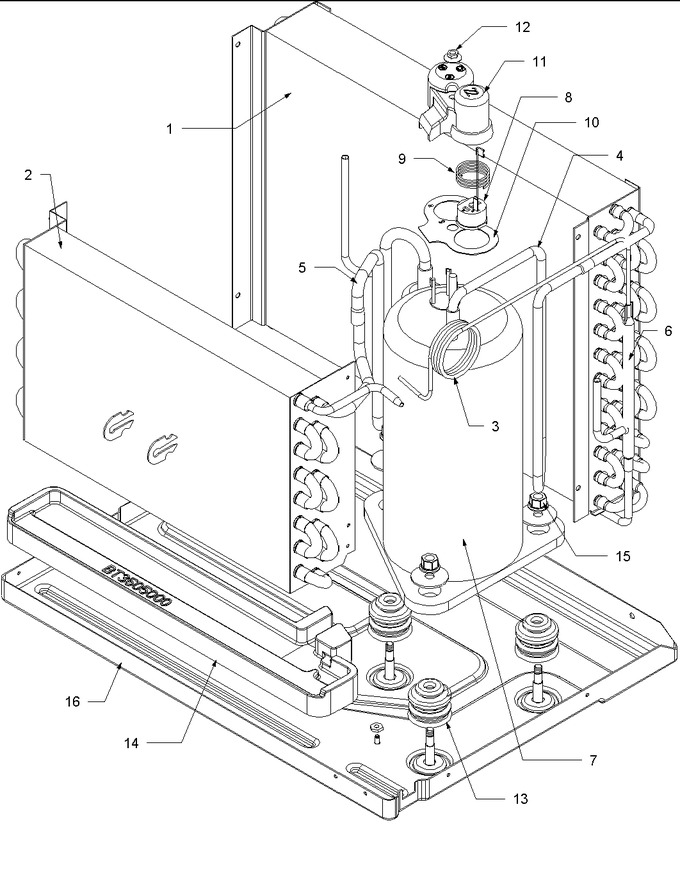

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3596501 | Cond Coil Tubing Assy |
|
- | |||||
| 2 | 3596001 | Assy, Evap Coil Tubing |
|
- | |||||
| 3 | 3593612 | Tube, Formed Capillary |
|
- | |||||
| 4 | 3593622 | Tubing, Discharge |
|
- | |||||
| 5 | 3593700 | Assy, Suction Line |
|
- | |||||
| 6 | 3593805 | Assy, Strainer |
|
- | |||||
| 7 | BT9266116 | Compressor |
|
- | |||||
| 8 | BT1243723 | Overload |
|
- | |||||
| 10 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 11 | BT3055500 | Cap Compressor |
|
- | |||||
| 12 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 13 | BT1339510 | Grommet - Comp (qty 3) |
|
- | |||||
| 14 | BT3505000 | Pan, Drain (styrofoam) |
|
- | |||||
| 15 | BT1393011 | Nut, Palnut |
|
- | |||||
| 16 | 3550200 | Assy, Base Pan |
|
- | |||||
| NOTE: | Note: When Replacing Ac07087m1d P1225018r Cond Coil Also Replace Discharge Line. If Discharge Line Only Is Required Use 3593625. |
|
- |
