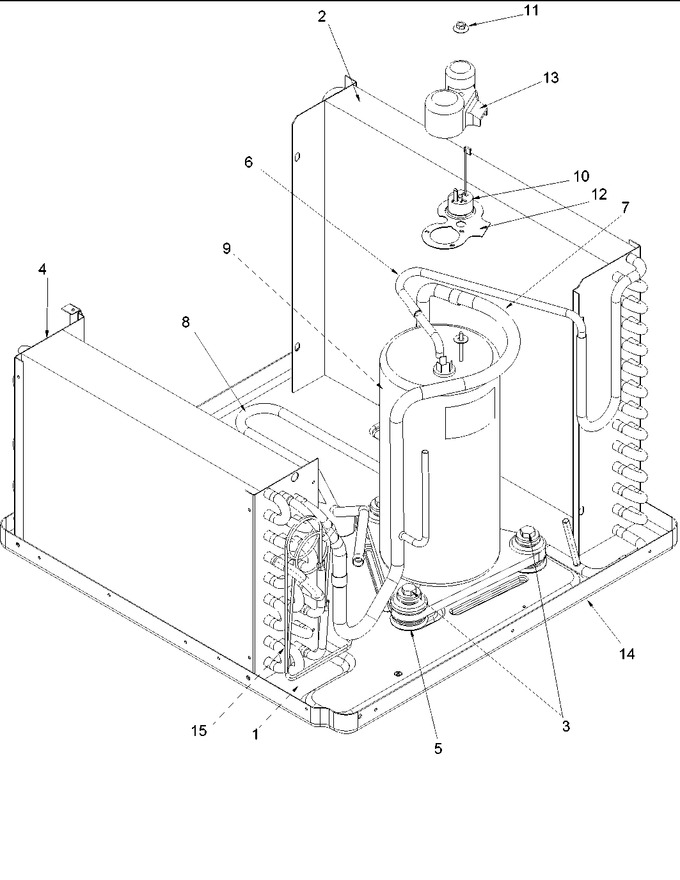

01 - Compressor Assy
02 - Fan And Control Assy
03 - Outer Case Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | BT3005000 | Pan, Drain (styrofoam Small) |
|
- | |||||
| 2 | 3096510 | Assy, Cond Coil Tubing |
|
- | |||||
| 3 | BT1393704 | Bolt, Comp. Shoulder 5/16-18 |
|
- | |||||
| 4 | 3096029 | Coil,evaporator |
|
- | |||||
| 5 | BT1339509 | Grommet,compressor |
|
- | |||||
| 6 | 30936249 | Tube, Discharge |
|
- | |||||
| 7 | 3093730 | Tube, Suction |
|
- | |||||
| 8 | 3093868 | Assy, Liquid Line |
|
- | |||||
| 9 | BT9266103 | Compressor |
|
- | |||||
| 10 | BT1243700 | Switch, Overload (serv) |
|
$ 28.40 | |||||
| 11 | BT1393000 | Nut, (tecumseh) |
|
- | |||||
| 12 | BT1392604 | Gasket, Compressor (tec) |
|
- | |||||
| 13 | BT3055505 | Plastic Cover |
|
- | |||||
| 14 | 3050211S | Base Pan Assy |
|
- | |||||
| 15 | 3093872 | Assy, Capillary Tube |
|
- | |||||
| NOTE: | Note: If Replacing Basepan On Older Models It Will Be Necessary To Order New Compressor Bolts. Evap Coil Tubing Assy Includes Cap Tube Assy. For Models With N |
|
- |
