01 - Compressor Assy


02 - Fan And Control Assy


03 - Outer Case Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

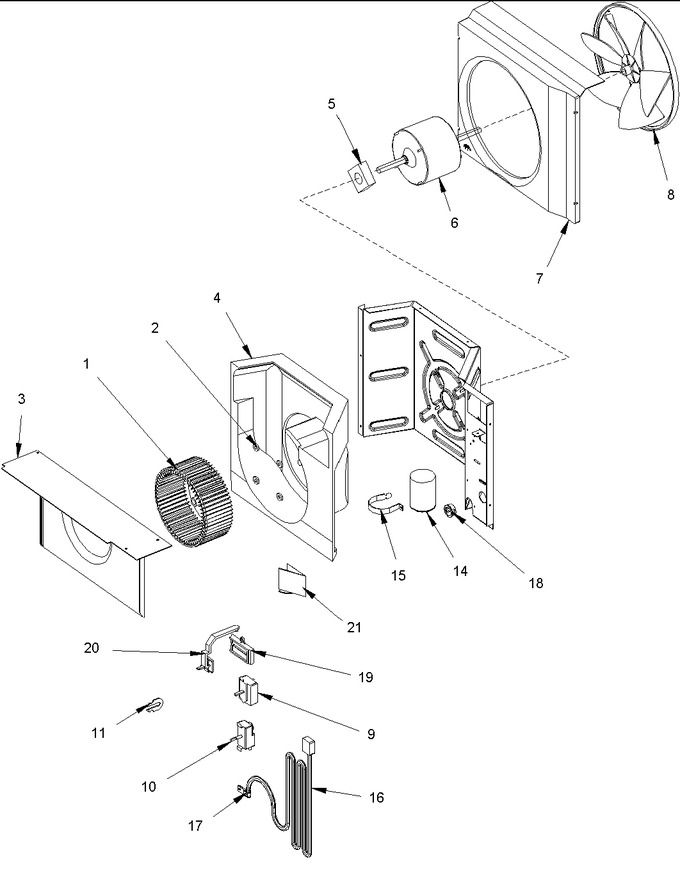

1	BT1368000		Wheel, Blower (serv)		Appelez-nous	-
2	BT1393001		Locknut, Nylon No.8-32		Appelez-nous	-
3	BT3010000		Partition, Blower (small)		Appelez-nous	-
4	BT3006000		Scroll, Styrofoam (small)		Appelez-nous	-
5	BT1392612		Gasket, Motor Mount		Appelez-nous	-
6	BT1340001C		Motor 1/8 Hp 115		Appelez-nous	-
7	BT3011000		Shroud, Fan (small Rac)		Appelez-nous	-
8	BT1086700		Fan Blade, Condenser 10``		Appelez-nous	-
9	BT1370803		Switch, Power (serv)		Appelez-nous	-
10	BT1370801		Thermostat, Short Shaft (serv)		Appelez-nous	-
11	BT1531800		Clip-bulb		Appelez-nous	-
14	BT9457002		Capacitor				$ 80.87
15	3084801		Strap, Capacitior		Appelez-nous	-
16	BT1210003		Power Cord		Appelez-nous	-
17	BT1393401		Relief, Power Cord (large)		Appelez-nous	-
18	BT1392100		Bushing, 1`` Dia.		Appelez-nous	-
19	BT3076302		Slide, Damper Control		Appelez-nous	-
20	BT3076220		Lever-cool Gray (small)		Appelez-nous	-
21	BT3076100		Door, Exhaust (rac)		Appelez-nous	-
