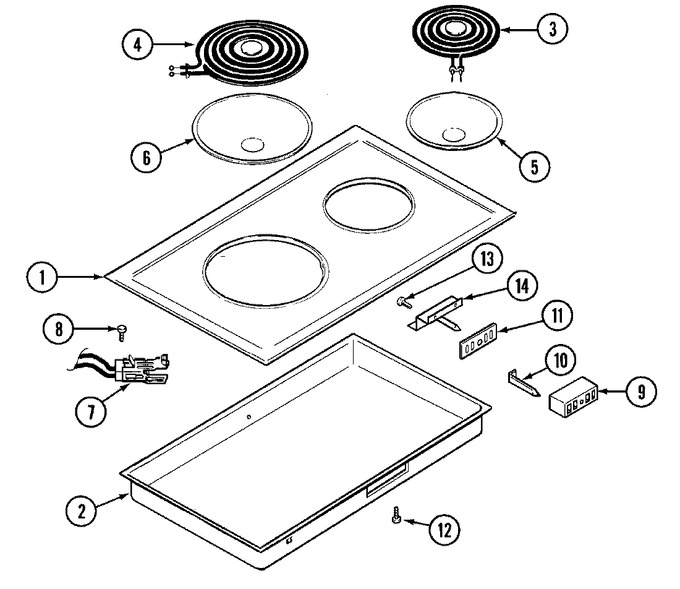

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100068 | Top (blk) | 1 |
|
- | ||||
| 2 | Y04100071 | Pan, Cartridge | 1 |
|
- | ||||
| 3 | Y04100453 | Element, 6`` Conv.(208v) | 1 |
|
- | ||||
| 4 | Y04100454 | Element, 8`` Conv. (208v) | 1 |
|
- | ||||
| 5 | 715877 | Pan, Drip (6``) | 1 |
|
Immediately | $ 21.54 | |||
| 6 | 715878 | Pan, Drip (8``) | 1 |
|
Immediately | $ 23.51 | |||
| 7 | 12001676 | Receptacle Mgt Kit (Replaces: 12200010) | 1 |
|
Immediately | $ 31.61 | |||
| 8 | WP74004005 | Screw (Replaces: Y708359) | 1 |
|
$ 8.66 | ||||
| 9 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
$ 102.01 | ||||
| 10 | Y708572 | Spade, Contact | 1 |
|
Immediately | $ 13.23 | |||
| 11 | 708834 | Insulator, Contact Spade | 1 |
|
$ 15.74 | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 8.76 | |||
| 13 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 7.08 | ||||
| 14 | WP74007474 | Receptacle, Ceramic (Replaces: Y704146) | 1 |
|
Immediately | $ 151.41 | |||
| 14 | Y712355 | Bracket, Receptacle | 1 |
|
- | ||||
| 14 | Y04100060 | Bracket, Retaining | 1 |
|
- | ||||
| NI | 71002546 | Manual, Use & Care | 10 |
|
- |
