01 - Compressor Assy


02 - Fan And Control Assy


03 - Outer Case Assy

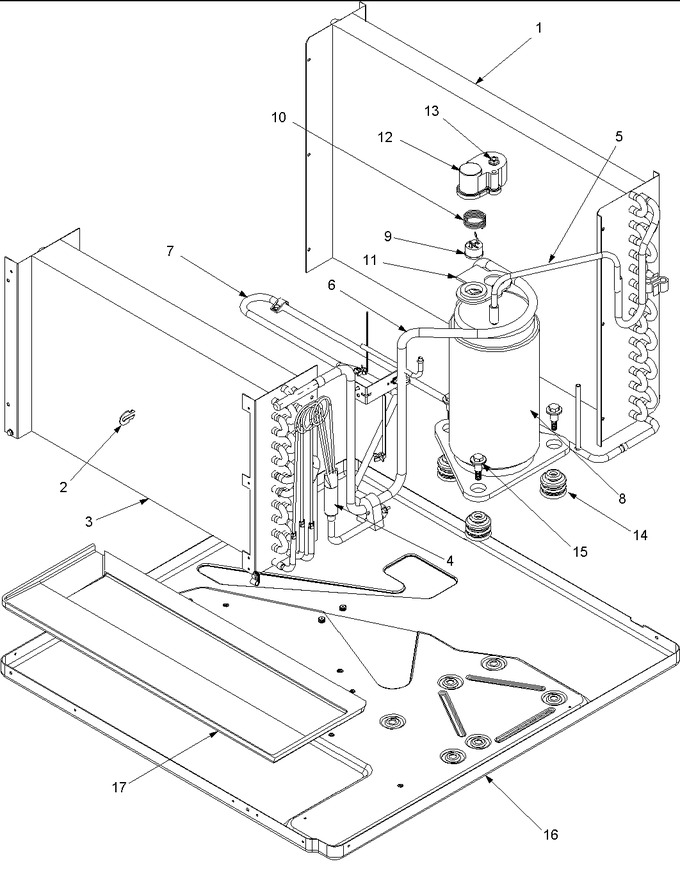

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3096505		Assy, Cond Coil Tubing		Appelez-nous	-
2	BT1531802		Clip, Bulb		Appelez-nous	-
3	3096020		Assy, Evap Coil Tubing		Appelez-nous	-
4	3093857		Assy, Capillary Tube		Appelez-nous	-
5	30936242		Discharge Line		Appelez-nous	-
6	3093856		Assy, Suction Line		Appelez-nous	-
7	3093836		Assy, Liquid Line		Appelez-nous	-
8	BT9266215		Compressor		Appelez-nous	-
9	BT1243717		Switch, Overload (mra98859-6)		Appelez-nous	-
10	BT1393705		Spring		Appelez-nous	-
11	BT1392619		Gasket Comp Cap		Appelez-nous	-
12	BT3055504		Cover, Compressor		Appelez-nous	-
13	WP776338		Nut   (Replaces: BT1393008)				$ 18.29
14	BT1339500		Grommet - Comp		Appelez-nous	-
15	BT1393704		Bolt, Comp. Shoulder 5/16-18		Appelez-nous	-
16	3050209S		Base Pan Assy		Appelez-nous	-
17	BT3005002		Pan, Drain (styrofoam Large)		Appelez-nous	-
